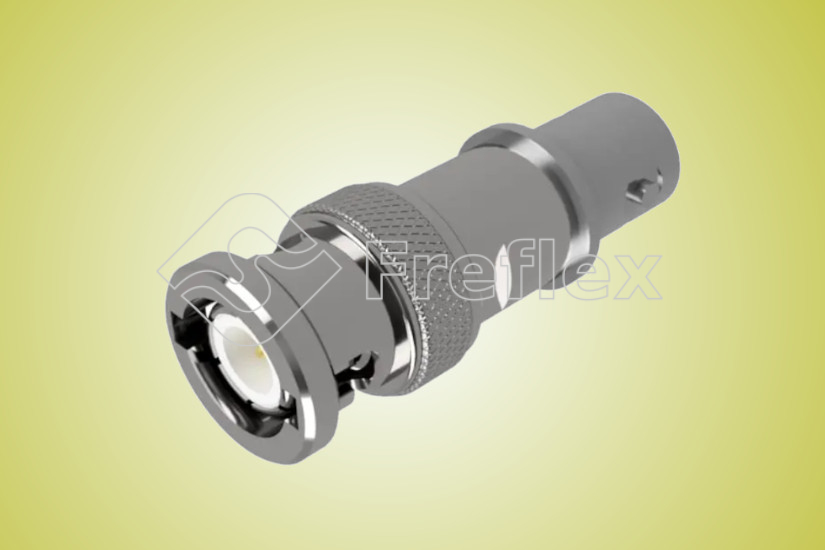

Freflex supplies various high precision and high power coaxial 75 ohms attenuators cover the frequency range DC~3GHz.The attenuators with different type to meet the needs of customers
Features:
- High Precision
- High Power
- Broadband
Applications:
- Wireless
- Radar
- Laboratory Test
| Part Number | Frequency (GHz) | Power (W) | Attenuation (dB) | Accuracy (dB) | VSWR (Max.) | Connectors | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|
| F7A0101 | DC~1 | 1 | 1, 2, 4, 8, 10, 16, 20 | ±0.5 | 1.1 | F | 2~4 |
| F7A0302 | DC~3 | 2 | 1~30 | ±0.6 | 1.25 | F, N, BNC | 2~4 |
| F7A0305 | DC~3 | 5 | 1~30 | ±0.6 | 1.25 | F, N, BNC | 2~4 |
| F7A0101-1 | 0.1~1 | 1 | 10, 20, 30, 40 | -2 | 1.15 | F, N | 2~4 |
