Freflexs Inc. supplies RF surge protectors work from DC~6GHz. Our RF surge protectors can be used in any application.
Features:
- Broadband
Applications:
- Any Applications

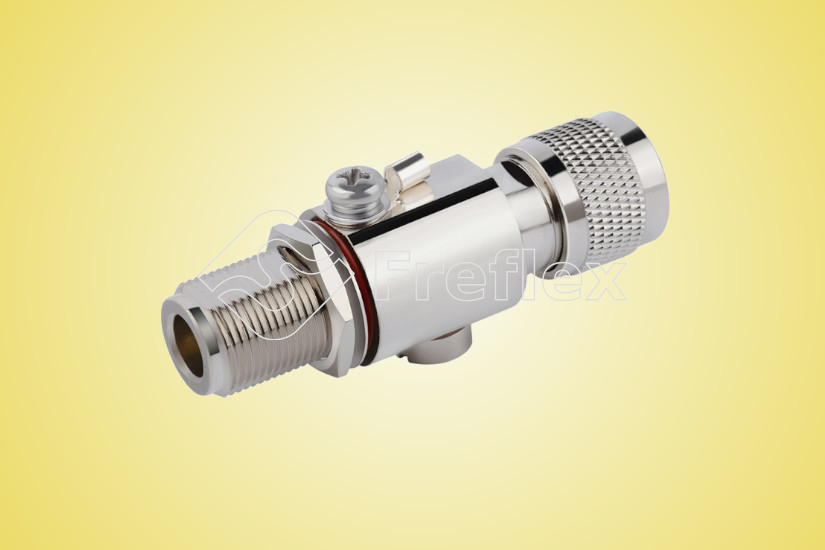

RF Surge Protectors
| Part Number | Frequency (GHz) | VSWR (Max.) | Insertion Loss (dB, max.) | Power (W) | Working Voltage (DC) | Lightning Surge Current (kA) | Connector | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|---|
| FSP44 | DC~3 | 1.2 | - | 400 | 90V/150V/230V/350V/600V | 10 | 4.3-10 | 1~2 |
| FSP77 | DC~3 | 1.2 | - | 2500 | - | 10 | 7/16 DIN | 1~2 |
| FSPBB | DC~3 | 1.2 | - | 200 | 90V/150V/230V/350V/600V | 20 | BNC | 1~2 |
| FSPFF | DC~3 | 1.2 | 0.25 | 200 | 90V/150V/230V/350V/600V | 20 | F | 1~2 |
| FSPNN | DC~6 | 1.2 | 0.25 | 200 | 90V/150V/230V/350V/600V | 20 | N | 1~2 |
| FSPSS | DC~6 | 1.2 | 0.25 | 200 | 90V/150V/230V/350V/600V | 20 | SMA | 1~2 |
| FSPTT | DC~6 | 1.25 | 0.45 | 200 | 90V/150V/230V/350V/600V | 20 | TNC | 1~2 |
Quarter Wave Surge Protectors
| Part Number | Frequency (GHz) | VSWR (Max.) | Insertion Loss (dB, max.) | Power (W) | Working Voltage (DC) | Lightning Surge Current (kA) | Connector | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|---|
| FWSP77 | 0.8~2.7 | 1.2 | 0.3 | 2500 | - | 30 | 7/16 DIN | 1~2 |
| FWSPNN | 0.8~6 | 1.25 | 0.2 | 2500 | - | 30 | N | 1~2 |
