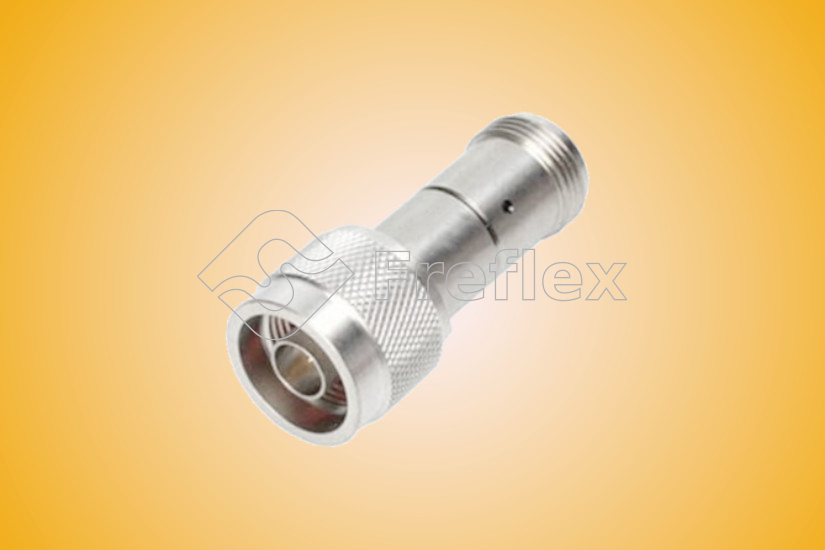

Freflexs Inc. provides impedance-matching-pads with a power range of 2~50W, including SMA, N, BNC and F, which are suitable for wireless, transmitter, radar, laboratory test and other areas.
Features:
- Low VSWR
Applications:
- Wireless
- Transmitter
- Laboratory Test
- Radar
| Part Number | Frequency (GHz) | Power (W) | Insertion Loss (dB Max.) | VSWR (Max.) | Typical Flatness(dB Max.) | Impedance | RF Connector | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|---|
| FIMP1302 | DC~1.3 | 2 | 5.7 | 1.06 | 0.1 | 50Ω, 75Ω | SMA, N, BNC, F | 2~4 |
| FIMP1305 | DC~1.3 | 5 | 5.7 | 1.06 | 0.1 | 50Ω, 75Ω | SMA, N, BNC, F | 2~4 |
| FIMP1350 | DC~1.3 | 50 | 5.7 | 1.2 | 0.1 | 50Ω, 75Ω | SMA, N, BNC, F | 2~4 |
| FIMP3002 | DC~3 | 2 | 5.7 | 1.15 | 0.15 | 50Ω, 75Ω | SMA, N, BNC, F | 2~4 |
| FIMP3005 | DC~3 | 5 | 5.7 | 1.15 | 0.15 | 50Ω, 75Ω | SMA, N, BNC, F | 2~4 |
| FIMP3050 | DC~3 | 50 | 5.7 | 1.25 | 0.15 | 50Ω, 75Ω | SMA, N, BNC, F | 2~4 |
