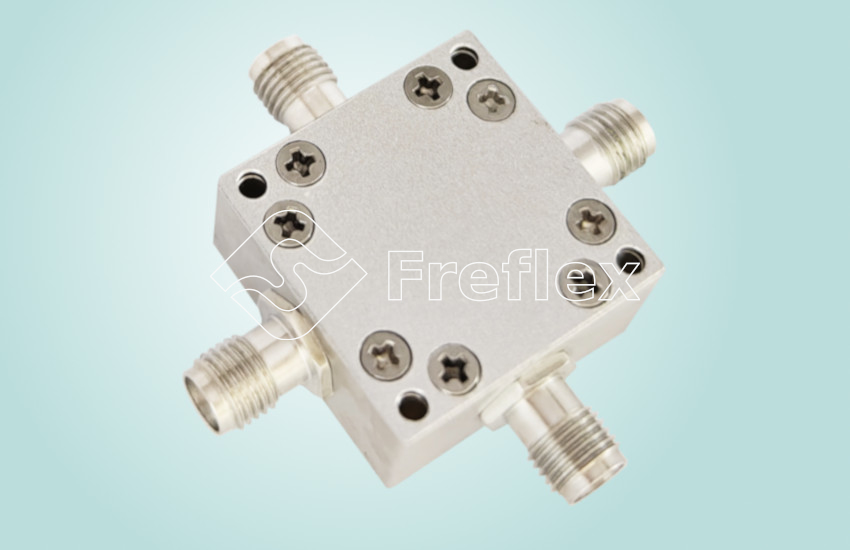

Freflexs Inc. supplies IQ-mixers work from 1.75 to 26GHz. Our IQ-mixers are widely used in many applications.
Features:
- Low Conversion Loss
- High Isolation
Applications:
- Wireless
- Transceiver
- Laboratory Test
- Broadcast
| Part Number | RF Frequency (GHz) | LO Frequency (GHz) | LO Input Power (dBm) |
IF Frequency (GHz) | Conversion Loss (dB) |
LO & RF Iso (dB) | LO & IF Iso (dB) | RF & IF Iso (dB) | Connectors | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|---|---|---|
| FIM-1750-5000 | 1.75~5 | 1.75~5 | 17 | DC~2 | 10 | 38 | 40 | 30 | SMA female | 2~4 |
| FIM-6000-10000 | 6~10 | 6~10 | 15 | DC~3.5 | 9 | 40 | 25 | 35 | SMA female | 2~4 |
| FIM-6000-26000 | 6~26 | 6~26 | 18 | DC~6 | 12 | 35 | 30 | 30 | SMA female | 2~4 |
