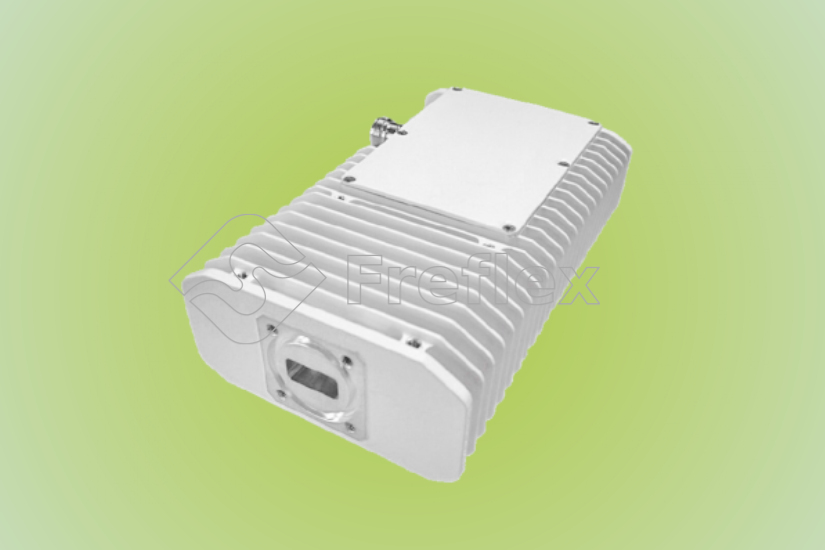

Freflex supplies various types of Block Up Converters (BUCs)in the C, Ka, Ku-Band, with a output power of 33~56dBm. The terminationswith different type to meet the needs of customers.
Features:
- Low Power Consumption
- High Power Threshold Setting
- Fully Modular Design
Applications:
- Satellite Earth Station
- Satellite Communication
- Telecommunication
| Part Number | Band | Output RF Frequency(GHz) |
LO Frequency (GHz) |
Input IF Frequency(MHz) |
Gain (dB) |
Psat (W(dBm)) |
IF Connector | VSWR (Max.) |
Lead Time （Weeks) |
|---|---|---|---|---|---|---|---|---|---|
| FBC-5850-6425-58-33S | C | 5.85~6.425 | - | 950~1525 | 58 | 2 (33) | N, F | 2.0/2.0 | 2~8 |
| FBC-5850-6425-60-37S | C | 5.85~6.425 | - | 950~1525 | 60 | 5 (37) | N, F | 2.0/2.0 | 2~8 |
| FBC-5850-6425-60-39S | C | 5.85~6.425 | - | 950~1525 | 60 | 8 (39) | N, F | 2.0/2.0 | 2~8 |
| FBC-5850-6425-70-43S | C | 5.85~6.425 | - | 950~1525 | 70 | 20 (43) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6425-70-44S | C | 5.85~6.425 | - | 950~1525 | 70 | 25 (44) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6425-70-46S | C | 5.85~6.425 | - | 950~1525 | 70 | 40 (46) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6425-75-50S | C | 5.85~6.425 | - | 950~1525 | 75 | 100 (50) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6425-75-53S | C | 5.85~6.425 | - | 950~1525 | 75 | 200 (53) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6425-75-56S | C | 5.85~6.425 | - | 950~1525 | 75 | 400 (56) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6725-58-33S | C | 5.85~6.725 | - | 950~1825 | 58 | 2 (33) | N, F | 2.0/2.0 | 2~8 |
| FBC-5850-6725-60-37S | C | 5.85~6.725 | - | 950~1825 | 60 | 5 (37) | N, F | 2.0/2.0 | 2~8 |
| FBC-5850-6725-60-39S | C | 5.85~6.725 | - | 950~1825 | 60 | 8 (39) | N, F | 2.0/2.0 | 2~8 |
| FBC-5850-6725-70-43S | C | 5.85~6.725 | - | 950~1825 | 70 | 20 (43) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6725-70-44S | C | 5.85~6.725 | - | 950~1825 | 70 | 25 (44) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6725-70-46S | C | 5.85~6.725 | - | 950~1825 | 70 | 40 (46) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6725-75-50S | C | 5.85~6.725 | - | 950~1825 | 75 | 100 (50) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6725-75-53S | C | 5.85~6.725 | - | 950~1825 | 75 | 200 (53) | N, F | 1.5/1.35 | 2~8 |
| FBC-5850-6725-75-56S | C | 5.85~6.725 | - | 950~1825 | 75 | 400 (56) | N, F | 1.5/1.35 | 2~8 |
| FBC-13750-14500-50-34S | Ku | 13.75~14.5 | - | 950~1700 | 100 (50) | 3 (34) | N, F | 2.5/2.5 | 2~8 |
| FBC-13750-14500-60-38S | Ku | 13.75~14.5 | - | 950~1700 | 60 | 6 (38) | N, F | 2.0/2.0 | 2~8 |
| FBC-13750-14500-60-39S | Ku | 13.75~14.5 | - | 950~1700 | 60 | 8 (39) | N, F | 2.0/2.0 | 2~8 |
| FBC-13750-14500-63-36S | Ku | 13.75~14.5 | - | 950~1700 | 63 | 4 (36) | N, F | 2.0/2.0 | 2~8 |
| FBC-13750-14500-70-42S | Ku | 13.75~14.5 | - | 950~1700 | 70 | 16 (42) | N, F | 1.5/2.0 | 2~8 |
| FBC-13750-14500-70-42S-1 | Ku | 13.75~14.5 | - | 950~1700 | 70 | 16 (42) | N, F | 1.5/1.35 | 2~8 |
| FBC-13750-14500-70-44S | Ku | 13.75~14.5 | 12.8 | 950~1700 | 70 | 25 (44) | N, F | 1.5/1.35 | 2~8 |
| FBC-13750-14500-70-46S | Ku | 13.75~14.5 | 12.8 | 950~1700 | 70 | 40 (46) | N, F | 1.5/1.35 | 2~8 |
| FBC-13750-14500-70-47.8S | Ku | 13.75~14.5 | - | 950~1700 | 70 | 60 (47.8) | N, F | 1.5/1.35 | 2~8 |
| FBC-13750-14500-70-50S | Ku | 13.75~14.5 | - | 950~1700 | 70 | 100 (50) | N, F | 1.5/1.35 | 2~8 |
| FBC-13750-14500-70-53S | Ku | 13.75~14.5 | - | 950~1700 | 70 | 200 (53) | N, F | 1.5/1.35 | 2~8 |
| FBC-14000-14500-50-34S | Ku | 14~14.5 | - | 950~1450 | 100 (50) | 3 (34) | N, F | 2.5/2.5 | 2~8 |
| FBC-14000-14500-60-38S | Ku | 14~14.5 | - | 950~1450 | 60 | 6 (38) | N, F | 2.0/2.0 | 2~8 |
| FBC-14000-14500-60-39S | Ku | 14~14.5 | - | 950~1450 | 60 | 8 (39) | N, F | 2.0/2.0 | 2~8 |
| FBC-14000-14500-63-36S | Ku | 14~14.5 | - | 950~1450 | 63 | 4 (36) | N, F | 2.0/2.0 | 2~8 |
| FBC-14000-14500-70-42S | Ku | 14~14.5 | - | 950~1450 | 70 | 16 (42) | N, F | 1.5/2.0 | 2~8 |
| FBC-14000-14500-70-42S-1 | Ku | 14~14.5 | - | 950~1450 | 70 | 16 (42) | N, F | 1.5/1.35 | 2~8 |
| FBC-14000-14500-70-44S | Ku | 14~14.5 | 13.05 | 950~1450 | 70 | 25 (44) | N, F | 1.5/1.35 | 2~8 |
| FBC-14000-14500-70-46S | Ku | 14~14.5 | 13.05 | 950~1450 | 70 | 40 (46) | N, F | 1.5/1.35 | 2~8 |
| FBC-14000-14500-70-47.8S | Ku | 14~14.5 | - | 950~1450 | 70 | 60 (47.8) | N, F | 1.5/1.35 | 2~8 |
| FBC-14000-14500-70-50S | Ku | 14~14.5 | - | 950~1450 | 70 | 100 (50) | N, F | 1.5/1.35 | 2~8 |
| FBC-14000-14500-70-53S | Ku | 14~14.5 | - | 950~1450 | 70 | 200 (53) | N, F | 1.5/1.35 | 2~8 |
| FBC-29000-30000-60-34S | Ka | 29~30 | - | 950~1950 | 60 | 3 (34) | N, F | 1.5/1.35 | 2~8 |
| FBC-29000-31000-65-37.8S | Ka | 29~31 | - | 950~1950 | 65 | 6 (37.8) | N, F | 1.5/1.35 | 2~8 |
| FBC-29000-31000-67-40S | Ka | 29~31 | - | 950~1950 | 67 | 10 (40) | N, F | 1.5/1.35 | 2~8 |
| FBC-29000-31000-70-43S | Ka | 29~31 | - | 950~1950 | 70 | 20 (43) | N, F | 1.5/1.35 | 2~8 |
| FBC-29000-31000-70-46S | Ka | 29~31 | - | 950~1950 | 70 | 40 (46) | N, F | 1.5/1.35 | 2~8 |
| FBC-29500-30000-60-34S | Ka | 29.5~30 | - | 950~1450 | 60 | 3 (34) | N, F | 1.5/1.35 | 2~8 |
| FBC-29500-30000-65-37.8S | Ka | 29.5~30 | - | 950~1450 | 65 | 6 (37.8) | N, F | 1.5/1.35 | 2~8 |
| FBC-29500-30000-67-40S | Ka | 29.5~30 | - | 950~1450 | 67 | 10 (40) | N, F | 1.5/1.35 | 2~8 |
| FBC-29500-30000-70-43S | Ka | 29.5~30 | - | 950~1450 | 70 | 20 (43) | N, F | 1.5/1.35 | 2~8 |
| FBC-29500-30000-70-46S | Ka | 29.5~30 | - | 950~1450 | 70 | 40 (46) | N, F | 1.5/1.35 | 2~8 |
| FBC-30000-31000-60-34S | Ka | 30~31 | - | 1000~2000 | 60 | 3 (34) | N, F | 1.5/1.35 | 2~8 |
| FBC-30000-31000-65-37.8S | Ka | 30~31 | - | 1000~2000 | 65 | 6 (37.8) | N, F | 1.5/1.35 | 2~8 |
| FBC-30000-31000-67-40S | Ka | 30~31 | - | 1000~2000 | 67 | 10 (40) | N, F | 1.5/1.35 | 2~8 |
| FBC-30000-31000-70-43S | Ka | 30~31 | - | 1000~2000 | 70 | 20 (43) | N, F | 1.5/1.35 | 2~8 |
| FBC-30000-31000-70-46S | Ka | 30~31 | - | 1000~2000 | 70 | 40 (46) | N, F | 1.5/1.35 | 2~8 |
