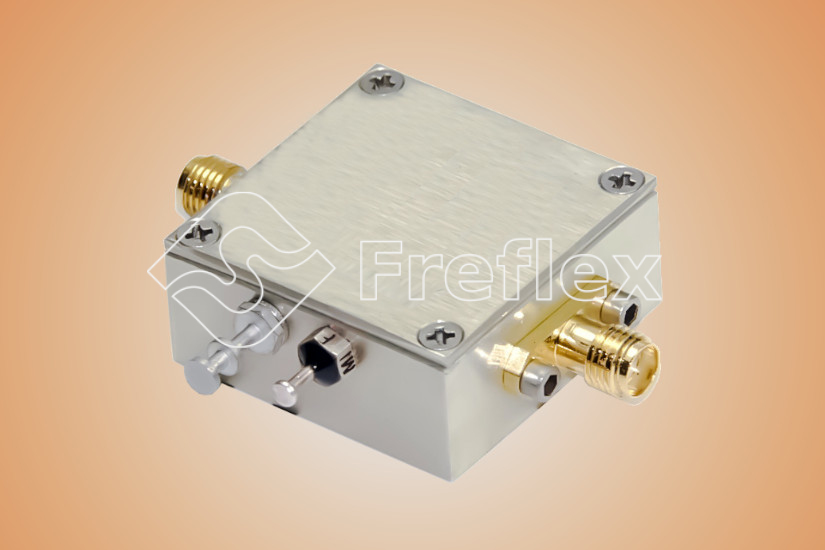

Freflex supplies frequency dividers in frequency range 0.1-26.5GHz. The frequency dividers are widely used in many applications.
Features:
- Low VSWR
Applications:
- Wireless
- Laboratory Test
2 Frequency Dividers
| Part Number | Input Frequency (GHz) |
Output Frequency (GHz) |
Output Power (dBm Min.) |
Divide Ratio | Harmonic (dBc max.) |
Spurious (dBc max.) |
Voltage(V) | Current(A) | LeadTime(Weeks) |
|---|---|---|---|---|---|---|---|---|---|
| FFD2-100 | 0.1 | 0.05 | 5~8 | 2 | -60 | -75 | 12 | 0.15 | 4~6 |
| FFD2-500-26500 | 0.5~26.5 | 0.25~13.25 | -3 | 2 | - | - | 12 | 0.1 | 4~6 |
6 Frequency Dividers
| Part Number | Input Frequency (GHz) |
Output Frequency (GHz) |
Output Power (dBm Min.) |
Divide Ratio | Harmonic (dBc max.) |
Spurious (dBc max.) |
Voltage(V) | Current(A) | LeadTime(Weeks) |
|---|---|---|---|---|---|---|---|---|---|
| FFD6-0.001 | - | 1K | - | 6 | - | - | +5 | - | 4~6 |
10 Frequency Dividers
| Part Number | Input Frequency (GHz) |
Output Frequency (GHz) |
Output Power (dBm Min.) |
Divide Ratio | Harmonic (dBc max.) |
Spurious (dBc max.) |
Voltage(V) | Current(A) | LeadTime(Weeks) |
|---|---|---|---|---|---|---|---|---|---|
| FFD10-900-1100 | 0.9~1.1 | 0.09~0.11 | 5~8 | 10 | -30 | -75 | +12 | 0.2 | 4~6 |
| FFD10-1000 | 1 | 0.1 | 5~8 | 10 | -30 | -75 | +12 | 0.2 | 4~6 |
| FFD10-9900-10100 | 9.9~10.1 | 0.99~1.01 | 7~10 | 10 | - | - | +8 | 0.23 | 4~6 |
32 Frequency Dividers
| Part Number | Input Frequency (GHz) |
Output Frequency (GHz) |
Output Power (dBm Min.) |
Divide Ratio | Harmonic (dBc max.) |
Spurious (dBc max.) |
Voltage(V) | Current(A) | LeadTime(Weeks) |
|---|---|---|---|---|---|---|---|---|---|
| FFD32-2856 | 2.856 | 0.08925 | 10±2 typ. | 32 | - | - | +12 | 0.3 | 4~6 |
