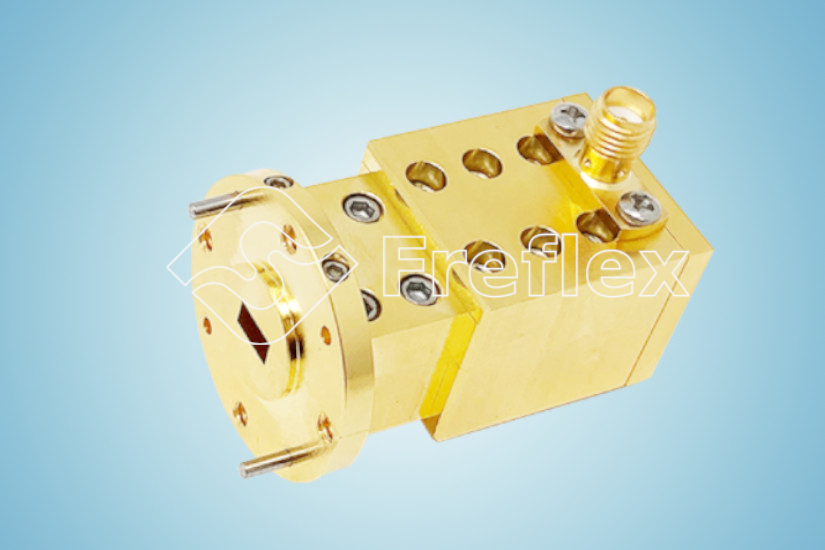

Freflexs Inc. supplies harmonic mixers work from 18 to 30GHz. Our harmonic mixers are widely used in many applications.
Features:
- Low Conversion Loss
- High Isolation
Applications:
- Wireless
- Transceiver
- Laboratory Test
- Broadcast
| Part Number | RF Frequency (GHz) | LO Frequency (GHz) | LO Input Power (dBm) |
IF Frequency (GHz) | Conversion Loss (dB) |
LO & RF Iso (dB) | LO & IF Iso (dB) | RF & IF Iso (dB) | Connectors | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|---|---|---|
| FHM-18000-30000 | 18~30 | 10~15 | 6~8 | DC~6 | 10~13 | 35 | 30 | 15 | SMA, 2.92mm | 2~4 |
