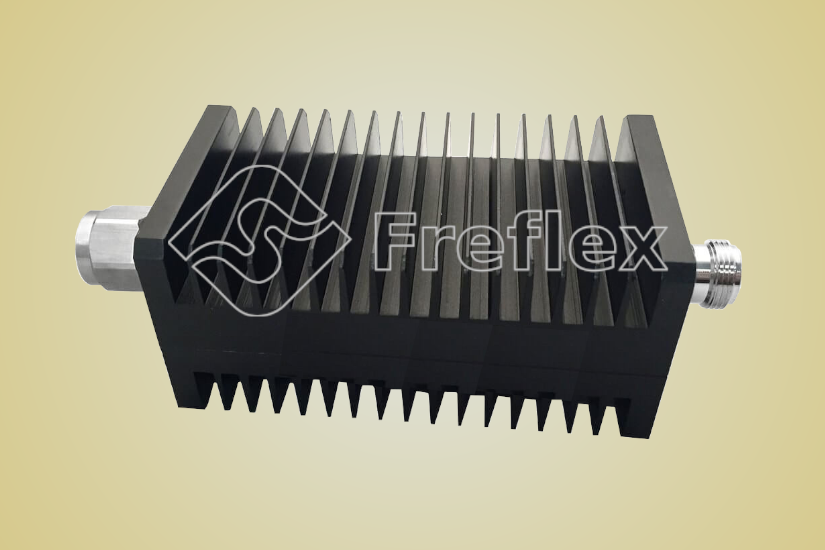

Freflex supplies various high precision and high power coaxial Low PIM Attenuators cover the frequency range DC~6GHz. The average power handling is up to 300 watts. The attenuators are used in many applications where reduction of power is needed.
Features:
- Low VSWR
- Low PIM
Applications:
- Wireless
- Radar
- Laboratory Test
| Part Number | Frequency (GHz) | Power (W) | IM3 (dBc Max.) | Attenuation (dB) | Accuracy (dB) | VSWR (Max.) | Connectors | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|---|
| FLPA06K2 | 0.4~6 | 200 | -160 | 6, 10, 20, 40 | - | 1.3 | 7/16 DIN (L29)&N | 2~4 |
| FLPA04K2 | 0.45~4 | 200 | -150 | 30, 40 | - | 1.3 | 7/16 DIN (L29)&N | 2~4 |
| FLPA03K3 | 0.8~3 | 300 | -150 | 10, 20, 30, 40 | - | 1.3 | N | 2~4 |
| FLPA0330 | 0.6~3 | 30 | -150, -160 | 5, 10, 15, 20, 25, 30 | - | 1.25 | N, 7/16 DIN (L29), 4.3-10 | 2~4 |
| FLPA0350-1 | 0.6~3 | 50 | -150, -160 | 5, 10, 15, 20, 25, 30 | - | 1.25 | N, 7/16 DIN (L29), 4.3-10 | 2~4 |
| FLPA03K1-1 | 0.6~3 | 100 | -150, -160 | 5, 10, 15, 20, 25, 30 | - | 1.25 | N, 7/16 DIN (L29), 4.3-10 | 2~4 |
| FLPA0302 | DC~3 | 2 | -120 | 3, 6, 10, 20, 30 | ±0.6 | 1.2 | N | 2~4 |
| FLPA0305 | DC~3 | 5 | -120 | 3, 6, 10, 20, 30 | ±0.6 | 1.2 | N | 2~4 |
| FLPA0310 | DC~3 | 10 | -120 | 3, 6, 10, 20, 30 | ±0.6 | 1.2 | N | 2~4 |
| FLPA0325 | DC~3 | 25 | -120 | 3, 6, 10, 20, 30 | ±0.6 | 1.2 | N | 2~4 |
| FLPA0350 | DC~3 | 50 | -120 | 10, 20, 30, 40 | ±0.6 | 1.3 | N | 2~4 |
| FLPA03K1 | DC~3 | 100 | -120 | 20, 30, 40 | ±0.6 | 1.3 | N | 2~4 |
| FLPA01K15 | DC~1 | 150 | -110 | 10 | ±0.8 | 1.2 | N | 2~4 |
