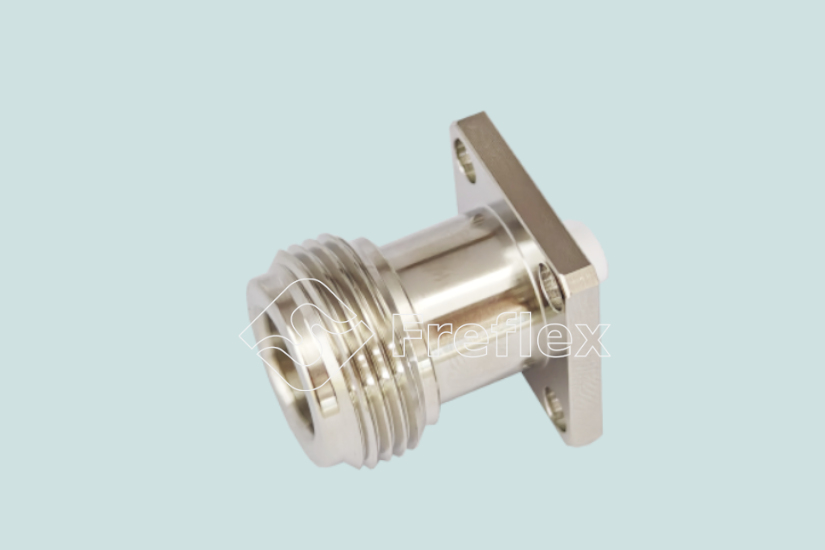

Freflex provides various Straight Terminal With Dielectric Connectors to meet different requirements. The frequency range covers DC~50GHz, and including 2.4mm, 2.92mm, BMA, SMA, N, TNC, SMP etc..
Features:
- Low VSWR
Applications:
- Wireless
- Radar
- Instruments
- Electronics
| Part Number | Connector | Frequency(GHz) | VSWR(Max.) | PIN(Φmm) | Description | Lead Time (week) |
|---|---|---|---|---|---|---|
| FC2-FL2G-P | 2.4mm Female | DC~50 | 1.15 | 0.3, 0.6 | 2-hole Flange Mount | 0~4 |
| FC2-FL4G-P | 2.4mm Female | DC~50 | 1.15 | 0.3, 0.6 | 4-hole Flange Mount | 0~4 |
| FCK-FL2G-P | 2.92mm Female | DC~40 | 1.15 | 0.3 | 2-hole Flange Mount | 0~4 |
| FCK-FL4G-P | 2.92mm Female | DC~40 | 1.15 | 0.3 | 4-hole Flange Mount | 0~4 |
| FCS-FL2G-P | SMA Female | DC~26.5 | 1.15 | 0.3, 0.64, 1.27, 1*0.2 | 2-hole Flange Mount | 0~4 |
| FCS-FL4G-P | SMA Female | DC~26.5 | 1.15 | 0.3, 0.64, 1.27, 1*0.2 | 4-hole Flange Mount | 0~4 |
| FCS-FRL4G-P100-01 | SMA Female | DC~26.5 | 1.2 | 1 | Right angle 4-hole Flange Mount | 0~4 |
| FCS-ML2G-P | SMA Male | DC~27 | 1.15 | 0.3, 1*0.2 | 2-hole Flange Mount | 0~4 |
| FCS-ML4G-P | SMA Male | DC~26.5 | 1.15 | 1*0.2 | 4-hole Flange Mount | 0~4 |
| FCN-FL4G-P | N Female | DC~18 | 1.15 | 0.2 | 4-hole Flange Mount | 0~4 |
| FCN-FL4B-P80-02 | N Female | DC~6 | - | 0.8 | 4-hole Flange Mount | 0~4 |
| FCN-FL4B-P304-01 | N Female | DC~6 | - | 3.04 | 4-hole Flange Mount | 0~4 |
| FCT-FL4B-P140-01 | TNC Female | DC~11 | - | 1.4 | 4-hole Flange Mount | 0~4 |
| FCT-FL4B-P127-02 | TNC Female | DC~8 | 1.2 | 1.27 | 4-hole Flange Mount | 0~4 |
| FCI-FB-P51-01 | BMA Female | DC~6 | 1.2 | 0.51 | Φ0.51mm | 0~4 |
| FCP-FL2B-P45-01 | SMP Female | DC~2 | - | 0.45 | 2-hole Flange Mount | 0~4 |
