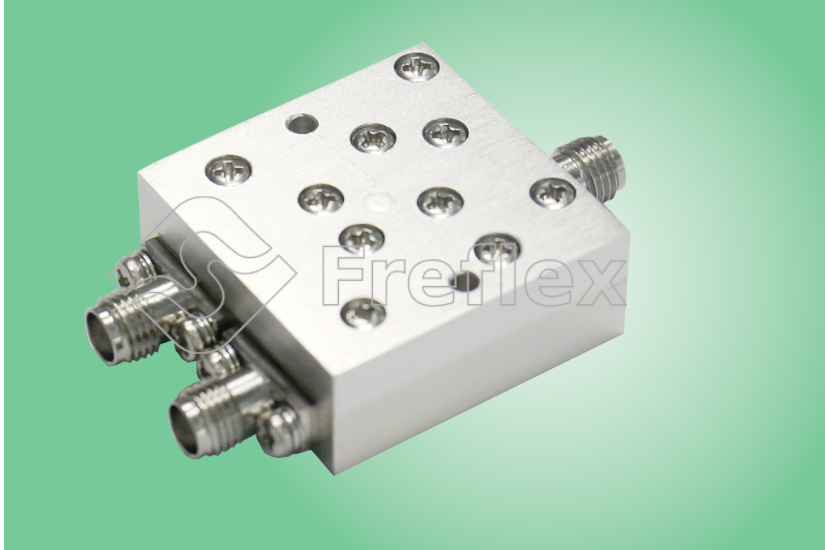

Freflex supplies high stopband rejection small size multiplexers in frequency range DC-36GHz. The multiplexers are widely used in many applications.
Features:
- High Stopband Rejection
- Small Size
Applications:
- Telecom
- Transceiver
- Laboratory Test
- Instrumentation
Diplexers/Duplexers
| Part Number | Channel 1 Frequency (GHz) |
Channel 2 Frequency (GHz) |
Insertion Loss (dB max.) |
VSWR (max.) |
Channel 1 Rejection (dB min.) |
Channel 2 Rejection (dB min.) |
Input power (W) |
Lead Time (Weeks) |
|---|---|---|---|---|---|---|---|---|
| FMP2-0-1000-1 | DC~0.15 | 0.18~1 | 2 | 1.6 | 60@0.18~1GHz | 60@DC~0.15GHz | 0.1 | 4~6 |
| FMP2-0-5000-1 | DC~0.95 | 1.4~5 | 0.6@0.475GHz 1@3.2GHz |
1.5 | 50@1.4~5GHz | 50@DC~0.95GHz | 10 | 4~6 |
| FMP2-0-5000-2 | DC~0.915 | 1.396~5 | 1 | 1.5 | 30@1.396~5GHz | 50@DC~0.915GHz | 5 | 4~6 |
| FMP2-0-8000-1 | DC~1 | 2~8 | 1.5 | 2 | 50@2~8GHz | 50@DC~1GHz | - | 4~6 |
| FMP2-0-15000-1 | DC-2 | 3-15 | 1.5 | 2 | 50@3-15GHz | 50@DC-2GHz | - | 4~6 |
| FMP2-0-18000-1 | DC-5.75 | 6.25-18 | 1.5 | 1.5 | 60@7-18GHz | 60@DC-5.5GHz | - | 4~6 |
| FMP2-0-20000-1 | DC~2 | 8~20 | 1.5 | 2 | 50@2.3~20GHz | 50@DC~7GHz | 5 | 4~6 |
| FMP2-10-5000-1 | 0.01-0.95 | 1.4-5 | 1 | 1.5 | 50@1.4-5GHz | 50@0.01-0.95GHz | - | 4~6 |
| FMP2-20-6000-1 | 0.02~1.1 | 3~6 | 2 | 2 | 45@1.35~6GHz | 45@DC~2.5GHz | 1 | 4~6 |
| FMP2-20-8000-1 | 0.02~0.8 | 0.93~8 | 2@0.02~0.8GHz 2.5@0.93~8GHz |
2 | 45@0.93~8GHz 45@0.02~0.75GHz |
45@0.02~0.8GHz 45@0.95~8GHz |
1 | 4~6 |
| FMP2-500-3550-1 | 0.5-1.9 | 1.9-3.55 | 2 | 2 | 50@DC-0.3GHz 50@2.2-4.4GHz |
50@DC-1.6GHz 50@4-8GHz |
- | 4~6 |
| FMP2-500-25000-1 | 0.5~8.3 | 10.3~25 | 2 | 2 | 40@10.3~25GHz | 40@0.5~8.3GHz | 5 | 4~6 |
| FMP2-695-965-1 | 0.695-0.795 | 0.875-0.965 | 1 | 1.4 | 40@0.875-0.965GHz | 40@0.695-0.795GHz | - | 4~6 |
| FMP2-703-803-1 | 0.703-0.748 | 0.758-0.803 | 1.5 | 1.3 | 65@0.758-0.803GHz | 70@0.703-0.748GHz | - | 4~6 |
| FMP2-800-5000-1 | 0.8-1 | 1.7-5 | 1 | 1.5 | 55@1.7-5GHz | 55@0.8-1GHz | - | 4~6 |
| FMP2-880-960-1 | 0.880-0.915 | 0.925-0.960 | 70@0.925-0.96GHz | 270@0.880-0.915GHz | - | 4~6 | ||
| FMP2-1025-1095-1 | 1.025-1.035 | 1.085-1.095 | 1 | 1.3 | 70@1.085-1.095GHz | 70@1.025-1.035GHz | - | 4~6 |
| FMP2-1427.9-1495.9-1 | 1.4279-1.4479 | 1.4759-1.4959 | 1.25 | 1.5 | 75@1.4759-1.4959GHz | 75@1.4279-1.4479GHz | - | 4~6 |
| FMP2-1447.9-1510.9-1 | 1.4479-1.4629 | 1.4959-1.5109 | 1.25 | 1.5 | 75@1.4959-1.5109GHz | 75@1.4479-1.4629GHz | - | 4~6 |
| FMP2-1513-1680-1 | 1.513~1.53 | 1.663~1.68 | 0.8 | 1.5 | 30@1.4215&1.6215GHz | 30@1.5715&1.7715GHz | - | 4~6 |
| FMP2-1700-2710-1 | 1.7-2.2 | 2.48-2.71 | 0.5 | 1.3 | 40@2.48-2.71GHz | 40@1.7-2.2GHz | - | 4~6 |
| FMP2-1700-7000-1 | 1.7~2 | 3~7 | 1.5 | 1.5 | 55@3~7GHz | 55@1.7~2GHz | - | 4~6 |
| FMP2-1710-1880-1 | 1.71-1.785 | 1.805-1.88 | 1 | 1.3 | 70@1.805-1.88GHz | 70@1.71-1.785GHz | - | 4~6 |
| FMP2-1850-1955-1 | 1.85-1.915 | 1.95-1.955 | 1.75 | 1.5 | 70@1.95-1.955GHz | 70@1.850-1.915GHz | - | 4~6 |
| FMP2-1920-6000-1 | 1.92-1.98 | 4.09-6 | 1.5 | 1.5 | 55@4.09-6GHz | 55@1.92-1.98GHz | - | 4~6 |
| FMP2-2000-12000-1 | 2-6 | 8-12 | 1 | 2 | 25@8-12GHz | 25@2-6GHz | - | 4~6 |
| FMP2-2025-2300-1 | 2.025~2.12 | 2.2~2.3 | 2 | 1.5 | - | - | - | 4~6 |
| FMP2-2300-7800-1 | 2.3-3.9 | 4.6-7.8 | 1 | 2 | 50@4.6-7.8GHZ | 50@DC-3.9GHz | - | 4~6 |
| FMP2-2400-5850-1 | 2.4~2.485 | 5.715~5.85 | 1 | 1.5 | - | - | 100 | 4~6 |
| FMP2-3900-11400-1 | 3.9-5.7 | 7.8-11.4 | 1 | 2 | 50@7.8-11.4GHZ | 50@DC-5.7GHz | - | 4~6 |
| FMP2-5000-14000-1 | 5-7 | 10-14 | 1 | 2 | 50@10-14GHz | 50@DC-7GHZ | - | 4~6 |
| FMP2-6000-22000-1 | 6-11 | 12-22 | 2 | 2 | 30@12-22GHz | 30@6-11GHz | - | 4~6 |
| FMP2-7000-18000-1 | 7-9 | 14-18 | 1 | 2 | 50@14-18GHz | 50@DC-9GHz | - | 4~6 |
| FMP2-7145-9000-1 | 7.145~7.25 | 7.7~9 | 2.5 | 1.5 | - | - | - | 4~6 |
| FMP2-7500-8500-1 | 7.5-7.8 | 8.2-8.5 | 1.5 | 1.5 | 75@8.2-8.5GHz | 75@7.5-7.8GHz | - | 4~6 |
| FMP2-10700-14500-1 | 10.7-11.7 | 12.75-14.5 | 0.7 | 1.3 | 70@12.75-14.5GHz | 70@10.7-11.7GHz | - | 4~6 |
| FMP2-10700-14500-2 | 10.7-12.75 | 13-14.5 | 0.8 | 1.3 | - | - | 100 | 4~6 |
| FMP2-10700-15000-1 | 10.7~12.75 | 13.75~15 | 1 | 1.45 | 50@13.75~18GHz | 50@DC~12.75GHz | 10 | 4~6 |
| FMP2-12000-36000-1 | 12-18 | 24-36 | 2 | 2.2 | 40@24-36GHz | 40@12-18GHz | - | 4~6 |
Triplexers
| Part Number | Channel 1 Frequency (GHz) |
Channel 2 Frequency (GHz) |
Channel 3 Frequency (GHz) |
Insertion Loss (dB) |
VSWR | Channel 1 Rejection (dB) |
Channel 2 Rejection (dB) |
Channel 3 Rejection (dB) |
Input power (W) |
Lead Time (Weeks) |
|---|---|---|---|---|---|---|---|---|---|---|
| FMP3-1163-1588-1 | 1.163~1.19 | 1.214~1.241 | 1.562~1.588 | 1.5 | 1.3 | - | - | - | 50 | 4~6 |
Quadplexers
| Part Number | Channel 1 Frequency (GHz) |
Channel 2 Frequency (GHz) |
Channel 3 Frequency (GHz) |
Channel 4 Frequency (GHz) |
Insertion Loss (dB) |
VSWR | Channel 1 Rejection (dB) |
Channel 2 Rejection (dB) |
Channel 3 Rejection (dB) |
Channel 4 Rejection (dB) |
Input power (W) |
Lead Time (Weeks) |
FMP4-0-20000-1 | DC~4.85 | 5.15~9.85 | 10.15~14.85 | 15.15~20 | 1.5 | 2 | 20/40@5.5&6GHz | 20/40@4.5&10.5GHz 20/40@4&11GHz |
20/40@9.5&15.5GHz 20/40@9&16GHz |
20/40@14.5&20.5GHz 20/40@14&21GHz |
10 | 4~6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FMP4-0-20000-2 | DC~6 | 6~11 | 11~16 | 16~20 | 2 | 2 | 20/40@6.5GHz 20/40@7GHz |
20/40@5.5&11.5GHz 20/40@5&12GHz |
20/40@10&17GHz 20/40@9&18GHz |
20/40@14.5GHz 20/40@14GHz |
10 | 4~6 |
