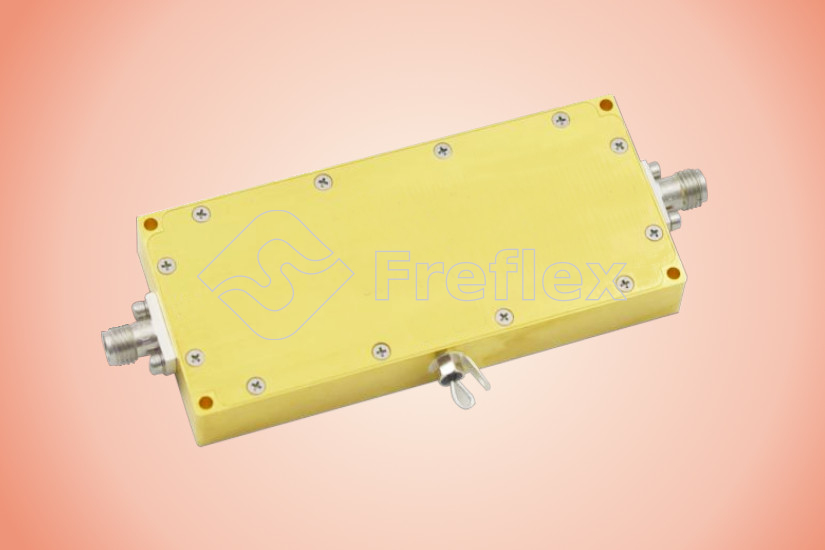

Freflex supplies low insertion loss and high power voltage-controlled phase shifters from 0.25 to 4GHz. The phase adjustment is up to 360°/GHz.
Features:
- Low Insertion Loss
- High Sensitivity
Applications:
- Transmitter
- Instrumentation
- Laboratory Test
- Wireless
| Part Number | Frequency(GHz) | Phase Adjustment (°) | Phase Flatness (°) | VSWR(Max.) | IL(dB, Max.) | Connectors |
|---|---|---|---|---|---|---|
| FVPS360-250-500 | 0.25-0.5 | 360 | ±30 | 2.0 | 5 | SMA |
| FVPS360-2000-4000 | 2-4 | 360 | ±30 | 2.0 | 8 | SMA |
