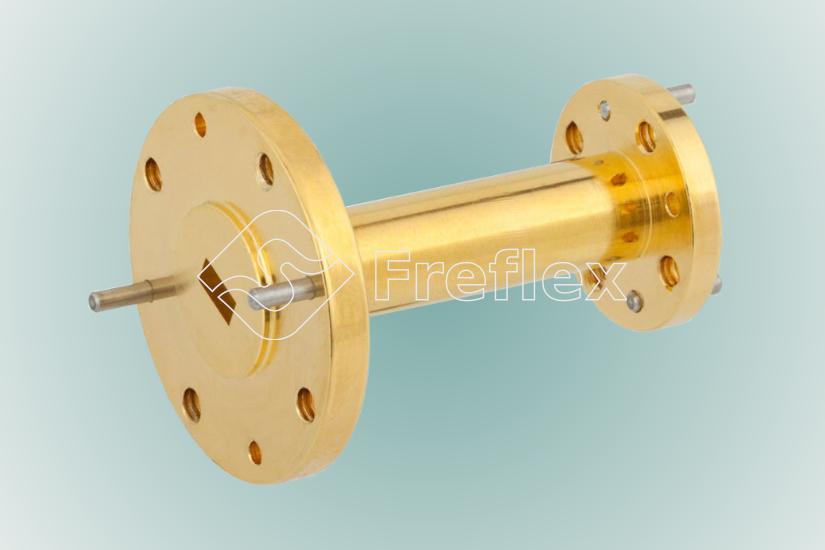

Freflexs Inc. supplies waveguide transitions cover the frequency range up to 173GHz, as well as customized waveguide transitions according to customers requirements.
Features:
- Low VSWR
Applications:
- Wireless
- Transceiver
- Laboratory Test
- Broadcast
| Part Number | Frequency (GHz) | IL(dB,Max.） | VSWR (max.) | Waveguide Size | Flange | Lead Time (weeks) |
|---|---|---|---|---|---|---|
| FWTR-10-6 | 113~173 | 0.8 | 1.2 | WR-10 (BJ900), WR-6 | FUGP900, FUGP1400 | 2~4 |
| FWTR-19-15 | 50~75 | 0.12 | 1.15 | WR-19 (BJ500), WR-15 (BJ620) | UG-383/UM, UG-385/U | 2~4 |
| FWTR-51-42 | 17.6~22 | 0.1 | 1.15 | WR-51 (BJ180), WR-42 (BJ220) | FBP180, FBP220 | 2~4 |
| FWTR-D650-90 | 8.2~12.5 | - | 1.2 | WRD-650, WR-90 (BJ100) | FPWRD650, FBP100 | 2~4 |
