Freflex provides various PCB connectors to meet different requirements. The frequency range covers DC~110GHz, and including 1.0mm, 1.85mm, 2.4mm, 2.92mm etc..
Features:
- Low VSWR
Applications:
- Wireless
- Radar
- Instruments
- Electronics

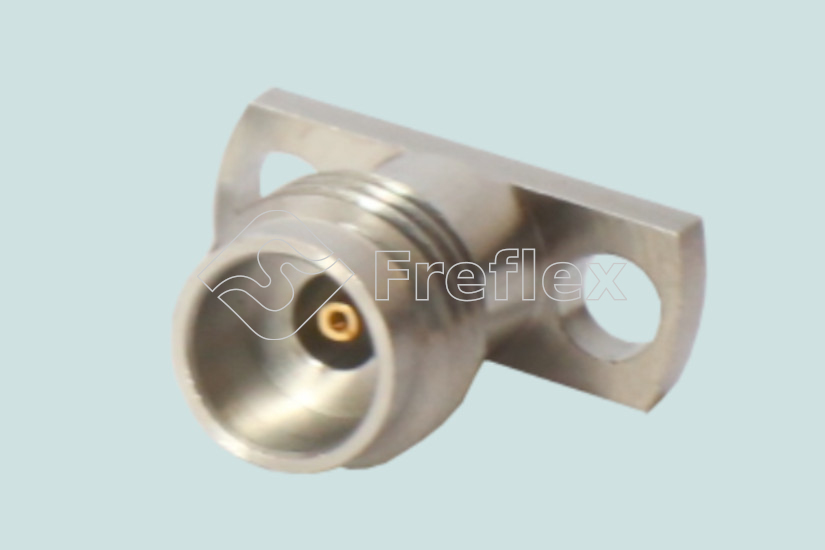

Field Replaceable Connectors
| Part Number | Connector | Frequency(GHz) | VSWR(Max.) | PIN(Φmm) | Description | Lead Time (week) |
|---|---|---|---|---|---|---|
| FC1-FL4G-S23-01 | 1.0mm Female | DC~110 | 1.35 | 0.23 | 4-hole Flange Mount, Φ9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FC1-FL2G-S23-01 | 1.0mm Female | DC~110 | 1.35 | 0.23 | 2-hole Flange Mount, 7.1*4.6mm, Hole Spacing 7.1mm, Aperture Φ1.7mm |
0~4 |
| FCV-FL2G-S-01 | 1.85mm Female | DC~67 | 1.25 | 0.23, 0.3 | 2-hole Flange Mount, Φ15.8*5.7mm, Hole Spacing 12.2mm, Aperture Φ2.6mm |
0~4 |
| FCV-FL2G-S-02 | 1.85mm Female | DC~67 | 1.25 | 0.23, 0.3 | 2-hole Flange Mount, Φ14*4.8mm, Hole Spacing 10.2mm, Aperture Φ2.6mm |
0~4 |
| FCV-FL4G-S-01 | 1.85mm Female | DC~67 | 1.25 | 0.23, 0.3 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCV-FL4G-S-02 | 1.85mm Female | DC~67 | 1.25 | 0.23, 0.3 | 4-hole Flange Mount, 9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FCV-FYG-S-01 | 1.85mm Female | DC~67 | 1.25 | 0.23, 0.3 | Threaded Connection, 11.3mm | 0~4 |
| FCV-FYG-S-02 | 1.85mm Female | DC~67 | 1.25 | 0.23, 0.3 | Threaded Connection, 11.3mm | 0~4 |
| FCV-ML2G-S-01 | 1.85mm Male | DC~67 | 1.25 | 0.23, 0.3 | 2-hole Flange Mount, Φ15.8*5.7mm, Hole Spacing 12.2mm, Aperture Φ2.6mm |
0~4 |
| FCV-ML2G-S-02 | 1.85mm Male | DC~67 | 1.25 | 0.23, 0.3 | 2-hole Flange Mount, Φ14*4.8mm, Hole Spacing 10.2mm, Aperture Φ2.6mm |
0~4 |
| FCV-ML4G-S-01 | 1.85mm Male | DC~67 | 1.25 | 0.23, 0.3 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCV-ML4G-S-02 | 1.85mm Male | DC~67 | 1.25 | 0.23, 0.3 | 4-hole Flange Mount, 9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FC2-FL2G-S-01 | 2.4mm Female | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2-hole Flange Mount, Φ15.8*5.7mm, Hole Spacing 12.2mm, Aperture Φ2.6mm |
0~4 |
| FC2-FL2G-S-02 | 2.4mm Female | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2-hole Flange Mount, Φ14*4.8mm, Hole Spacing 10.2mm, Aperture Φ2.6mm |
0~4 |
| FC2-FL2G-S-03 | 2.4mm Female | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.9mm, Aperture Φ2.6mm |
0~4 |
| FC2-FL2G-S-04 | 2.4mm Female | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FC2-FL4G-S-01 | 2.4mm Female | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FC2-FL4G-S-02 | 2.4mm Female | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 4-hole Flange Mount, 9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FC2-FL4G-S-03 | 2.4mm Female | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 4-hole Flange Mount, 12.7*9.5mm, Hole Spacing 8.64*5.64mm, Aperture Φ2.6mm |
0~4 |
| FC2-FYG-S-01 | 2.4mm Female | DC~50 | 1.15 | 0.23, 0.3, 0.51 | Threaded Connection, 11.7mm | 0~4 |
| FC2-FYG-S-02 | 2.4mm Female | DC~50 | 1.15 | 0.23, 0.3, 0.51 | Threaded Connection, 11.7mm | 0~4 |
| FC2-ML2G-S-01 | 2.4mm Male | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 2-hole Flange Mount, Φ15.8*5.7mm, Hole Spacing 12.2mm, Aperture Φ2.6mm |
0~4 |
| FC2-ML2G-S-02 | 2.4mm Male | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 2-hole Flange Mount, Φ14*4.8mm, Hole Spacing 10.2mm, Aperture Φ2.6mm |
0~4 |
| FC2-ML2G-S-03 | 2.4mm Male | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.9mm, Aperture Φ2.6mm |
0~4 |
| FC2-ML2G-S-04 | 2.4mm Male | DC~50 | 1.15 | 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FC2-ML4G-S-01 | 2.4mm Male | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FC2-ML4G-S-02 | 2.4mm Male | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 4-hole Flange Mount, 9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FCA-FL2G-S-01 | SSMA Female | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ15.8*5.7mm, Hole Spacing 12.2mm, Aperture Φ2.6mm |
0~4 |
| FCA-FL2G-S-02 | SSMA Female | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ14*4.8mm, Hole Spacing 10.2mm, Aperture Φ2.6mm |
0~4 |
| FCA-FL2G-S-03 | SSMA Female | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.9mm, Aperture Φ2.6mm |
0~4 |
| FCA-FL2G-S-04 | SSMA Female | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCA-FL2G-S-05 | SSMA Female | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ12.2*4.8mm, Hole Spacing 8.33mm, Aperture Φ2.6mm |
0~4 |
| FCA-FL4G-S-01 | SSMA Female | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCA-FL4G-S-02 | SSMA Female | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FCA-FL4G-S-03 | SSMA Female | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 12.7*9.5mm, Hole Spacing 8.64*5.64mm, Aperture Φ2.6mm |
0~4 |
| FCA-ML2G-S-01 | SSMA Male | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCA-ML2G-S-02 | SSMA Male | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ12.2*4.8mm, Hole Spacing 8.33mm, Aperture Φ2.6mm |
0~4 |
| FCA-ML4G-S-01 | SSMA Male | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FCK-FL2G-S-01 | 2.92mm Female | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ15.8*5.7mm, Hole Spacing 12.2mm, Aperture Φ2.6mm |
0~4 |
| FCK-FL2G-S-02 | 2.92mm Female | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ14*4.8mm, Hole Spacing 10.2mm, Aperture Φ2.6mm |
0~4 |
| FCK-FL2G-S-03 | 2.92mm Female | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.9mm, Aperture Φ2.6mm |
0~4 |
| FCK-FL2G-S-04 | 2.92mm Female | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCK-FL4G-S-01 | 2.92mm Female | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCK-FL4G-S-02 | 2.92mm Female | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FCK-FL4G-S-03 | 2.92mm Female | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 12.7*9.5mm, Hole Spacing 8.64*5.64mm, Aperture Φ2.6mm |
0~4 |
| FCK-FL4G-S23-04 | 2.92mm Female | DC~40 | 1.25 | 0.23 | 4-hole Flange Mount, 12.7*9.53mm, Hole Spacing 8.64mm, Aperture Φ2.6mm |
0~4 |
| FCK-FYG-S-01 | 2.92mm Female | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | Threaded Connection, 9.9mm | 0~4 |
| FCK-FYG-S-02 | 2.92mm Female | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | Threaded Connection, 10.8mm | 0~4 |
| FCK-ML2G-S-01 | 2.92mm Male | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ15.8*5.7mm, Hole Spacing 12.2mm, Aperture Φ2.6mm |
0~4 |
| FCK-ML2G-S-02 | 2.92mm Male | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ14*4.8mm, Hole Spacing 10.2mm, Aperture Φ2.6mm |
0~4 |
| FCK-ML2G-S-03 | 2.92mm Male | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.9mm, Aperture Φ2.6mm |
0~4 |
| FCK-ML2G-S-04 | 2.92mm Male | DC~40 | 1.15 | 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCK-ML4G-S-01 | 2.92mm Male | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCK-ML4G-S-02 | 2.92mm Male | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FCK-ML4G-S-03 | 2.92mm Male | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 12.7*9.5mm, Hole Spacing 8.64*5.64mm, Aperture Φ2.6mm |
0~4 |
| FCK-ML4G-S23-04 | 2.92mm Male | DC~40 | 1.25 | 0.23 | 4-hole Flange Mount, 12.7*12.88mm, Hole Spacing 8.64mm， Aperture Φ2.6mm |
0~4 |
| FCS-FL2G-S-01 | SMA Female | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | 2-hole Flange Mount, Φ15.7*5.7mm, Hole Spacing 12.2mm, Aperture Φ2.6mm |
0~4 |
| FCS-FL2G-S-02 | SMA Female | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | 2-hole Flange Mount, Φ14*4.8mm, Hole Spacing 10.2mm, Aperture Φ2.6mm |
0~4 |
| FCS-FL2G-S-03 | SMA Female | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.9mm, Aperture Φ2.6mm |
0~4 |
| FCS-FL2G-S-04 | SMA Female | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCS-FL4G-S-01 | SMA Female | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCS-FL4G-S-02 | SMA Female | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | 4-hole Flange Mount, 9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FCS-FL4G-S-03 | SMA Female | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | 4-hole Flange Mount, 12.7*9.5mm, Hole Spacing 8.64*5.64mm, Aperture Φ2.6mm |
0~4 |
| FCS-FL4G-S-04 | SMA Female | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 11.5*9mm, Hole Spacing 8*5mm, Aperture Φ2.6mm |
0~4 |
| FCS-FYG-S-01 | SMA Female | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | Threaded Connection, 10.8mm | 0~4 |
| FCS-ML2G-S-01 | SMA Male | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ15.8*5.7mm, Hole Spacing 12.2mm, Aperture Φ2.6mm |
0~4 |
| FCS-ML2G-S-02 | SMA Male | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ14*4.8mm, Hole Spacing 10.2mm, Aperture Φ2.6mm |
0~4 |
| FCS-ML2G-S-03 | SMA Male | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.9mm, Aperture Φ2.6mm |
0~4 |
| FCS-ML2G-S-04 | SMA Male | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2-hole Flange Mount, Φ12.7*4.8mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCS-ML4G-S-01 | SMA Male | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCS-ML4G-S-02 | SMA Male | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 9.5*9.5mm, Hole Spacing 6.35mm, Aperture Φ1.7mm |
0~4 |
| FCS-ML4G-S-03 | SMA Male | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 4-hole Flange Mount, 12.7*9.5mm, Hole Spacing 8.64*5.64mm, Aperture Φ2.6mm |
0~4 |
| FCN-FL4G-S-01 | N Female | DC~18 | 1.15 | 0.46, 0.51, 0.91 | 4-hole Flange Mount, 25.4*25.4mm, Hole Spacing 18.3mm, Aperture Φ3.5mm |
0~4 |
| FCN-FL4G-S-02 | N Female | DC~18 | 1.15 | 0.46, 0.51, 0.91 | 4-hole Flange Mount, 17.5*17.5mm, Hole Spacing 12.7mm, Aperture Φ2.6mm |
0~4 |
| FCN-FL4G-S-03 | N Female | DC~18 | 1.15 | 0.46, 0.51, 0.91 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCN-ML4G-S-01 | N Male | DC~18 | 1.15 | 0.46, 0.51, 0.91 | 4-hole Flange Mount, 25.4*25.4mm, Hole Spacing 18.3mm, Aperture Φ3.5mm |
0~4 |
| FCN-ML4G-S-02 | N Male | DC~18 | 1.15 | 0.46, 0.51, 0.91 | 4-hole Flange Mount, 17.5*17.5mm, Hole Spacing 12.7mm, Aperture Φ2.6mm |
0~4 |
| FCN-ML4G-S-03 | N Male | DC~18 | 1.15 | 0.46, 0.51, 0.91 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCT-FL4G-S-01 | TNC Female | DC~18 | 1.15 | 0.46, 0.51, 0.91 | 4-hole Flange Mount, 17.5*17.5mm, Hole Spacing 12.7mm, Aperture Φ2.6mm |
0~4 |
| FCT-FL4G-S-02 | TNC Female | DC~18 | 1.15 | 0.46, 0.51, 0.91 | 4-hole Flange Mount, 12.7*12.7mm, Hole Spacing 8.6mm, Aperture Φ2.6mm |
0~4 |
| FCT-ML4G-S-01 | TNC Male | DC~18 | 1.15 | 0.46, 0.51, 0.91 | 4-hole Flange Mount, 17.5*17.5mm, Hole Spacing 12.7mm, Aperture Φ2.6mm |
0~4 |

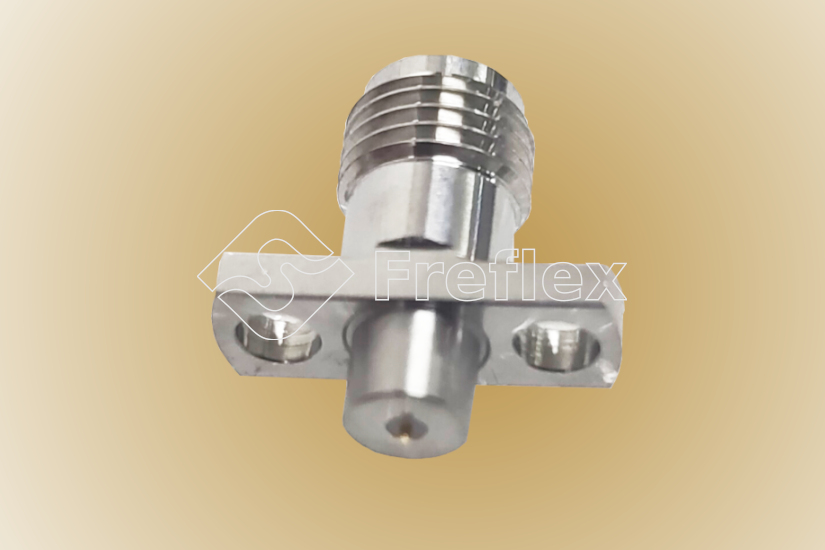

Straight Terminal With Metal Connectors
| Part Number | Connector | Frequency (GHz) | VSWR (Max.) | PIN（Φmm) | Description | Lead Time (week) |
|---|---|---|---|---|---|---|
| FCG-MO-M | SSMP Male*1 | DC~65 | 1.25 | 0.3 | Φ0.3mm | 0~4 |
| FCGL-MRB-D30-01 | SSMP Male*1 | DC~30 | 1.6 | 0.3 | Right angle Limited Detend | 0~4 |
| FCGS-MRB-D30-01 | SSMP Male*1 | DC~30 | 1.6 | 0.3 | Right angle Smooth Bore | 0~4 |
| FC2-FL2G-M | 2.4mm Female | DC~50 | 1.15 | 0.3 | 2-hole Flange Mount | 0~4 |
| FC2-FL4G-M | 2.4mm Female | DC~50 | 1.15 | 0.3 | 4-hole Flange Mount | 0~4 |
| FCA-FL2G-M | SSMA Female | DC~40 | 1.2 | 0.6 | 2-hole Flange Mount | 0~4 |
| FCA-FL4G-M | SSMA Female | DC~40 | 1.2 | 0.6 | 4-hole Flange Mount | 0~4 |
| FCK-FL2G-M | 2.92mm Female | DC~40 | 1.15 | 0.3, 0.6 | 2-hole Flange Mount | 0~4 |
| FCK-FL4G-M | 2.92mm Female | DC~40 | 1.15 | 0.3, 0.6 | 4-hole Flange Mount | 0~4 |
| FCPF-MB-M38 | SMP Male | DC~40 | 1.3 | 0.38 | Full Detent | 0~4 |
| FCPF-ML2G-M38 | SMP Male | DC~40 | 1.3 | 0.38 | Full Detent, 2-hole Flange Mount | 0~4 |
| FCPF-MO-M38-01 | SMP Male | DC~40 | 1.25 | 0.38 | Full Detent | 0~4 |
| FCPL-MB-M38 | SMP Male | DC~40 | 1.3 | 0.38 | Limited Detent | 0~4 |
| FCPL-MYB-M38 | SMP Male | DC~40 | 1.3 | 0.38 | Limited Detent,Threaded Connection | 0~4 |
| FCPL-MO-M | SMP Male | DC~40 | 1.25 | 0.38 | Limited Detent | 0~4 |
| FCS-FL2G-M | SMA Female | DC~26.5 | 1.15 | 0.38, 0.8, 0.8*0.2 | 2-hole Flange Mount | 0~4 |
| FCS-FL4G-M | SMA Female | DC~26.5 | 1.15 | 0.38, 0.8, 1*0.2, 0.8*0.2 | 4-hole Flange Mount | 0~4 |
| FCS-ML2G-M | SMA Male | DC~26.5 | 1.15 | 0.38 | 2-hole Flange Mount | 0~4 |
| FCS-ML4G-M | SMA Male | DC~26.5 | 1.15 | 0.38 | 4-hole Flange Mount | 0~4 |
| FCS-FYB-M60 | SMA Female | DC~18 | 1.2 | 0.6 | Screw Thread， Φ0.6mm | 0~4 |
| FCPF-MB-M46 | SMP Male | DC~18 | - | 0.46 | Full Detent | 0~4 |
| FCN-FL4G-M | N Female | DC~18 | 1.15 | 1.27 | 4-hole Flange Mount | 0~4 |
| FCN-FL4G-M304-01 | N Female | DC~18 | 1.2 | 3.04 | 4-hole Flange Mount, 17.5*17.5mm | 0~4 |
| FCN-ML4G-M | N Male | DC~18 | 1.15 | 1.27 | 4-hole Flange Mount | 0~4 |
| FCT-FL4G-M | TNC Female | DC~18 | 1.15 | 0.8 | 4-hole Flange Mount | 0~4 |
| FCI-MYG-M51 | BMA Male | DC~6 | 1.2 | 0.51 | Screw Thread， Φ0.51mm | 0~4 |
| FCI-FYG-M51 | BMA Female | DC~6 | 1.2 | 0.51 | Screw Thread， Φ0.51mm | 0~4 |
| FCB-FL4B-M230-01 | BNC Female | DC~4 | - | 2.3 | 4-hole Flange Mount | 0~4 |
| FCB-ML4B-M230-01 | BNC Male | DC~4 | - | 2.3 | 4-hole Flange Mount | 0~4 |
| FCS1-FL4B-M170-01 | SHV Female | DC~0.4 | - | 1.7 | 4-hole Flange Mount | 0~4 |
| FCS1-ML4B-M150-01 | SHV Male | DC~0.4 | - | 1.5 | 4-hole Flange Mount | 0~4 |
[1] Mateable with GPPO, SMPM & Mini-SMP.

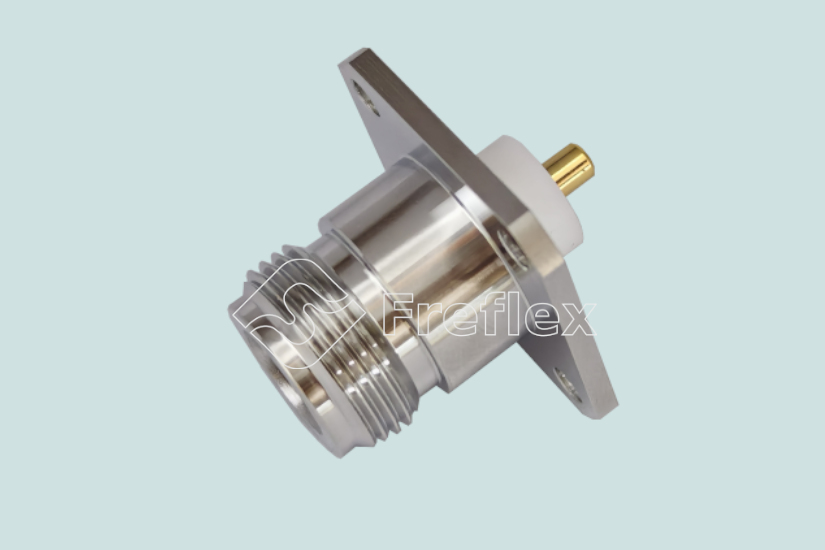

Straight Terminal With Dielectric Connectors
| Part Number | Connector | Frequency (GHz) | VSWR (Max.) | PIN（Φmm) | Description | Lead Time (week) |
|---|---|---|---|---|---|---|
| FC2-FL2G-P | 2.4mm Female | DC~50 | 1.15 | 0.3, 0.6 | 2-hole Flange Mount | 0~4 |
| FC2-FL4G-P | 2.4mm Female | DC~50 | 1.15 | 0.3, 0.6 | 4-hole Flange Mount | 0~4 |
| FCK-FL2G-P | 2.92mm Female | DC~40 | 1.15 | 0.3 | 2-hole Flange Mount | 0~4 |
| FCK-FL4G-P | 2.92mm Female | DC~40 | 1.15 | 0.3 | 4-hole Flange Mount | 0~4 |
| FCS-FL2G-P | SMA Female | DC~26.5 | 1.15 | 0.3, 0.64, 1.27, 1*0.2 | 2-hole Flange Mount | 0~4 |
| FCS-FL4G-P | SMA Female | DC~26.5 | 1.15 | 0.3, 0.64, 1.27, 1*0.2 | 4-hole Flange Mount | 0~4 |
| FCS-FRL4G-P100-01 | SMA Female | DC~26.5 | 1.2 | 1 | Right angle 4-hole Flange Mount | 0~4 |
| FCS-ML2G-P | SMA Male | DC~26.5 | 1.15 | 1*0.2 | 2-hole Flange Mount | 0~4 |
| FCS-ML4G-P | SMA Male | DC~26.5 | 1.15 | 1*0.2 | 4-hole Flange Mount | 0~4 |
| FCN-FL4G-P | N Female | DC~18 | 1.15 | 0.2 | 4-hole Flange Mount | 0~4 |
| FCN-FL4B-P80-02 | N Female | DC~6 | - | 0.8 | 4-hole Flange Mount | 0~4 |
| FCN-FL4B-P304-01 | N Female | DC~6 | - | 3.04 | 4-hole Flange Mount | 0~4 |
| FCT-FL4B-P140-01 | TNC Female | DC~11 | - | 1.4 | 4-hole Flange Mount | 0~4 |
| FCT-FL4B-P127-02 | TNC Female | DC~8 | 1.2 | 1.27 | 4-hole Flange Mount | 0~4 |
| FCI-FB-P51-01 | BMA Female | DC~6 | 1.2 | 0.51 | Φ0.51mm | 0~4 |
| FCP-FL2B-P45-01 | SMP Female | DC~2 | - | 0.45 | 2-hole Flange Mount | 0~4 |

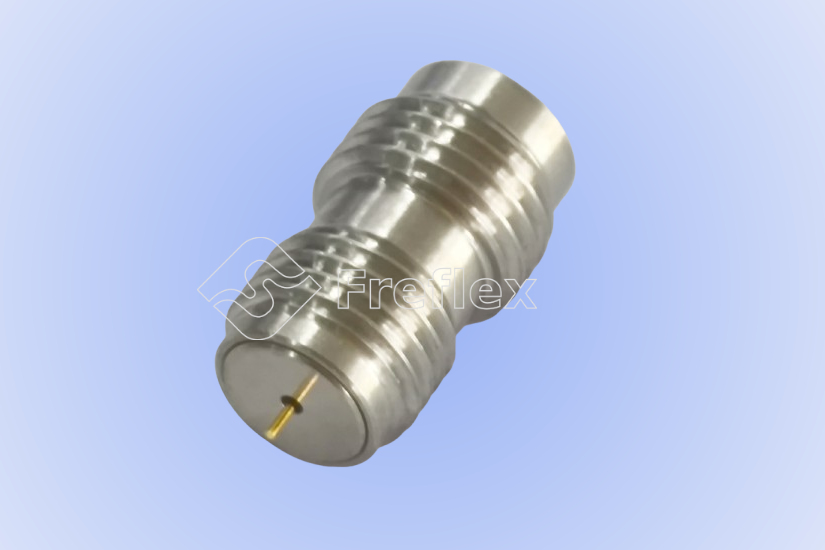

Straight Terminal Without Dielectric Connectors
| Part Number | Connector | Frequency (GHz) | VSWR (Max.) | PIN（Φmm) | Description | Lead Time (week) |
|---|---|---|---|---|---|---|
| FCV-FL2G-D | 1.85mm Female | DC~67 | 1.25 | 0.3, 0.58 | 2-hole Flange Mount | 0~4 |
| FCV-FL4G-D | 1.85mm Female | DC~67 | 1.25 | 0.3, 0.58 | 4-hole Flange Mount | 0~4 |
| FCV-FYG-D | 1.85mm Female | DC~67 | 1.25 | 0.3 | Threaded Connection | 0~4 |
| FCV-MYG-D | 1.85mm Male | DC~67 | 1.25 | 0.3 | Threaded Connection | 0~4 |
| FC2-FL2G-D | 2.4mm Female | DC~50 | 1.15 | 0.64, 0.75, 0.86, 1, 1.04, 1.2 | 2-hole Flange Mount | 0~4 |
| FC2-FL4G-D | 2.4mm Female | DC~50 | 1.15 | 0.64, 0.75, 0.86, 1, 1.04, 1.2 | 4-hole Flange Mount | 0~4 |
| FC2-FYG-D | 2.4mm Female | DC~50 | 1.15 | 0.3 | Threaded Connection | 0~4 |
| FC2-ML2G-D | 2.4mm Male | DC~50 | 1.15 | 0.64, 0.86 | 2-hole Flange Mount | 0~4 |
| FC2-ML4G-D | 2.4mm Male | DC~50 | 1.15 | 0.64, 0.86 | 4-hole Flange Mount | 0~4 |
| FCK-FL2G-D | 2.92mm Female | DC~40 | 1.15 | 0.3, 0.64, 0.75 | 2-hole Flange Mount | 0~4 |
| FCK-FL4G-D | 2.92mm Female | DC~40 | 1.15 | 0.3, 0.64, 0.75 | 4-hole Flange Mount | 0~4 |
| FCK-ML2G-D | 2.92mm Male | DC~40 | 1.15 | 0.64 | 2-hole Flange Mount | 0~4 |
| FCK-ML4G-D | 2.92mm Male | DC~40 | 1.15 | 0.64 | 4-hole Flange Mount | 0~4 |
| FCS-FYG-D175-01 | SMA Female | DC~27 | 1.15 | 1.75 | Threaded Connection | 0~4 |
| FCS-FL2G-D | SMA Female | DC~26.5 | 1.15 | 0.64, 0.87, 1.27 | 2-hole Flange Mount | 0~4 |
| FCS-FL4G-D | SMA Female | DC~26.5 | 1.15 | 0.64, 0.87, 1.27 | 4-hole Flange Mount | 0~4 |
Tab Terminal Connectors
| Part Number | Connector | Frequency (GHz) | VSWR (Max.) | PIN（Φmm) | Description | Lead Time (week) |
|---|---|---|---|---|---|---|
| FCS-FL2G-T | SMA Female | DC~26.5 | 1.15 | 0.64*0.2, 1.27*0.15 | 2-hole Flange Mount | 0~4 |
| FCS-FL4G-T | SMA Female | DC~26.5 | 1.15 | 0.64*0.2, 1.27*0.15 | 4-hole Flange Mount | 0~4 |
| FCN-FL4G-T | N Female | DC~18 | 1.15 | 1.5*0.2 | 4-hole Flange Mount | 0~4 |
| FCN-ML4G-T | N Male | DC~18 | 1.15 | 1.5*0.2 | 4-hole Flange Mount | 0~4 |
| FCT-FL4G-T | TNC Female | DC~18 | 1.15 | 1.5*0.2 | 4-hole Flange Mount | 0~4 |
| FCT-ML4G-T | TNC Male | DC~18 | 1.15 | 1.5*0.2 | 4-hole Flange Mount | 0~4 |
Printed Circuit Board Mount Connectors
| Part Number | Connector | Frequency (GHz) | VSWR (Max.) | PIN（Φmm) | Description | Lead Time (week) |
|---|---|---|---|---|---|---|
| FCK-FB-B30 | 2.92mm Female | DC~40 | 1.15 | 0.3 | - | 0~4 |
| FCK-FB-B127-01 | 2.92mm Female | DC~40 | 1.15 | 1.27 | - | 0~4 |
| FCPL-MB-B20-01 | SMP Male | DC~40 | - | 0.2 | Limited Detent | 0~4 |
| FCS-FB-B30 | SMA Female | DC~26.5 | 1.15 | 0.3 | - | 0~4 |
| FCS-FB-B127 | SMA Female | DC~26.5 | 1.15 | 1.27 | - | 0~4 |
| FCPF-MB-B38-01 | SMP Male | DC~18 | - | 0.38 | Full Detent | 0~4 |
| FCPF-MB-B70-02 | SMP Male | DC~18 | - | 0.7 | Full Detent | 0~4 |
| FCPF-MB-B70-03 | SMP Male | DC~18 | - | 0.7 | Full Detent | 0~4 |
