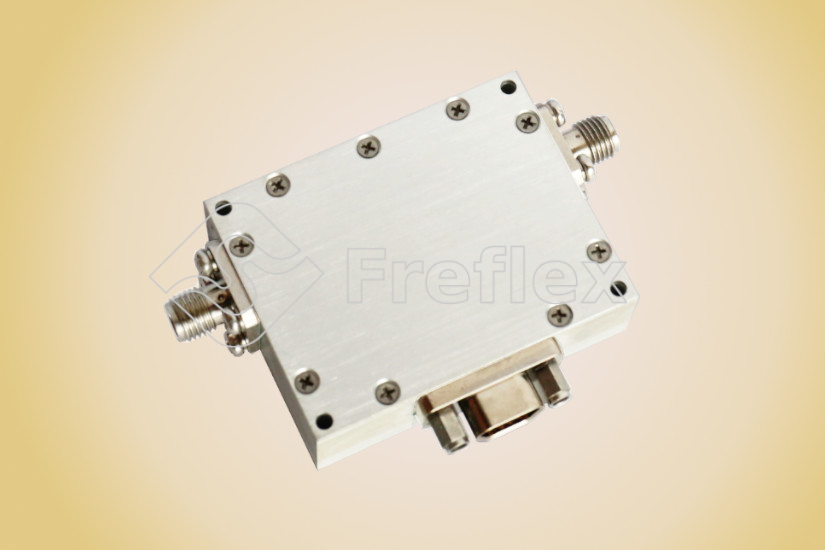

Freflex supplies low insertion loss and high power digital-controlled phase shifters from DC to 40GHz. The phase adjustment is up to 900°/GHz. And the average power handling is up to 100 watts.
Features:
- Broadband
- High Reliable
Applications:
- Laboratory Test
- Instrumentation
| Part Number | Frequency (GHz) | Phase Range (°) | Control Bits (Bits) | Step (°) | VSWR(Max.) | IL(dB, Max.) | Connectors |
|---|---|---|---|---|---|---|---|
| FDPS-300-2000-360-6 | 0.3-2 | 360 | 6 | 5.625 | 2.2 | 19 | SMA |
| FDPS-400-500-360-8 | 0.4-0.5 | 360 | 8 | 1.4 | 2 | 5.5 | SMA |
| FDPS-400-2000-360-6 | 0.4-2 | 360 | 6 | 5.625 | 2.2 | 19 | SMA |
| FDPS-1000-2000-360-6 | 1-2 | 360 | 6 | 5.625 | 0.8 | 2.5 | SMA |
| FDPS-1300-1500-360-6 | 1.3-1.5 | 360 | 6 | 5.625 | 2 | 5 | SMA |
| FDPS-1700-1975-360-6 | 1.7-1.9 | 360 | 6 | 5.625 | 2 | 5 | SMA |
| FDPS-2000-4000-360-6 | 2-4 | 360 | 6 | 5.625 | 3 | 6 | SMA |
| FDPS-2000-8000-360-6 | 2-8 | 360 | 6 | 5.625 | 2 | 20 | SMA |
| FDPS-2000-18000-360-6 | 2-18 | 360 | 6 | 5.625 | 2.5 | 30 | SMA |
| FDPS-7000-9000-360-7 | 7-9 | 360 | 7 | 2.8125 | 2.2 | 14 | SMA |
| FDPS-8000-18000-360-6 | 8-18 | 360 | 6 | 5.625 | 2.2 | 16 | SMA |
| FDPS-9000-10000-360-6 | 9-10 | 360 | 6 | 5.625 | 2 | 8 | SMA |
| FDPS-10000-10500-360-6 | 10-10.5 | 360 | 6 | 5.625 | 1.8 | 7.5 | SMA |
| FDPS-10400-10600-360-6 | 10.4-10.6 | 360 | 6 | 5.625 | 2 | 10 | SMA |
| FDPS-18000-28000-360-6 | 18-28 | 360 | 6 | 5.625 | 2.5 | 17 | 2.92mm |
| FDPS-18000-40000-360-6 | 18-40 | 360 | 6 | 5.625 | 2.5 | 22 | 2.92mm |
| FDPS-25000-27000-270-2 | 25-27 | 270 | 2 | 90 | 2.5 | 10.5 | 2.92mm |
