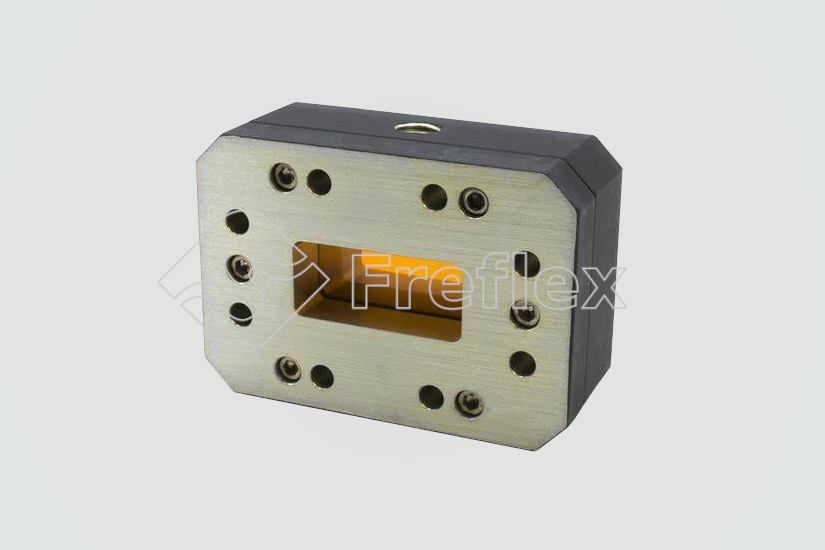

Freflexs Inc. supplies pressure windows cover the frequency range up to 40GHz, as well as customized pressure windows according to customers requirements.
Features:
- Low VSWR
Applications:
- Wireless
- Transceiver
- Laboratory Test
- Broadcast
| Part Number | Frequency (GHz) | IL(dB,Max.） | VSWR (max.) | Withstand Air Pressure | Waveguide Size | Flange | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|
| FPW28 | 26.5~40 | 0.25 | 1.25 | 30PSI min. | WR-28 (BJ320) | FBP320, FBM320 | 2~4 |
| FPW51 | 14.5~22 | 0.6 | 1.35 | 0.1MPA max. | WR-51 (BJ180) | FBP180 | 2~4 |
| FPW90-C-1 | 8~11 | 0.2 | 1.2 | 0.1MPA min. | WR-90 (BJ100) | FBP100, FBM100 | 2~4 |
