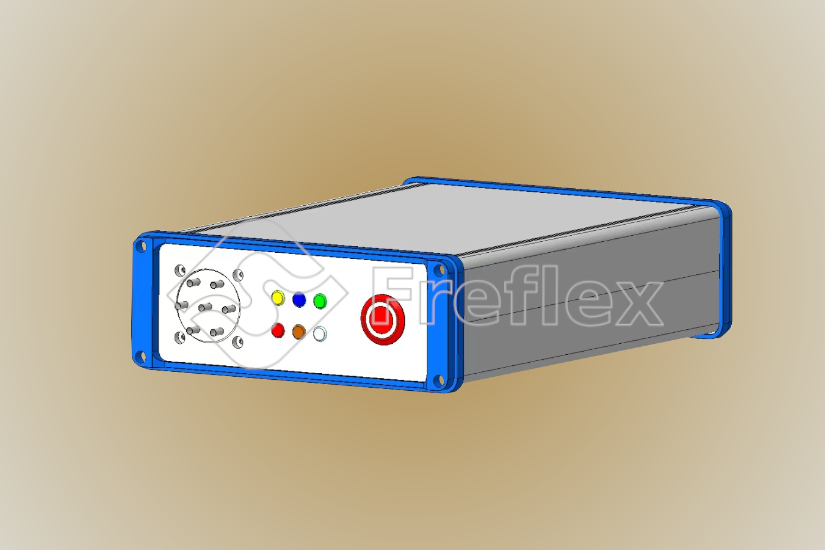

Freflexs Inc. supplies switch matrixs work at DC~67GHz. We provide standard high performance switch matrixs.
Features:
- Low Insertion Loss
- High Isolation
- Artistic
- Usability
Applications:
- Wireless
- Transmitter
- Laboratory Test
- Radar
| Part Number | Frequency (GHz) | Switch Type | IL (dB) | Isolation (dB) | VSWR | Connectors | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|
| FSM-0-67000-20-8-1 | DC~67 | SP8T, SP4T, SPDT, DPDT | 12 | 60 | 2 | 2.92mm, 1.85mm | 2~4 |
| FSM-0-X-1-2-1 | DC~18，26.5, 40, 50, 67 | SPDT | 0.5~1.2 | 40~60 | 1.4~2.2 | SMA, 2.92mm, 2.4mm, 1.85mm | 2~4 |
| FSM-0-X-1-Y-2 | DC~18，26.5, 40, 50 | SP3T~SP6T | 0.5~1.2 | 50~60 | 1.5~2.2 | SMA, 2.92mm, 2.4mm | 2~4 |
| FSM-0-40000-4-32-1 | DC~40 | 4*SP8T | 1.1 | 70 | 2.0 | 2.92mm | 2~4 |
| FSM-0-40000-3-18-1 | DC~40 | 3*SP6T | 0.5~1.0 | 50 | 1.9 | 2.92mm | 2~4 |
| FSM-0-18000-4-24-1 | DC~18 | 4*SP6T | 0.5 | 60 | 1.5 | SMA | 2~4 |
