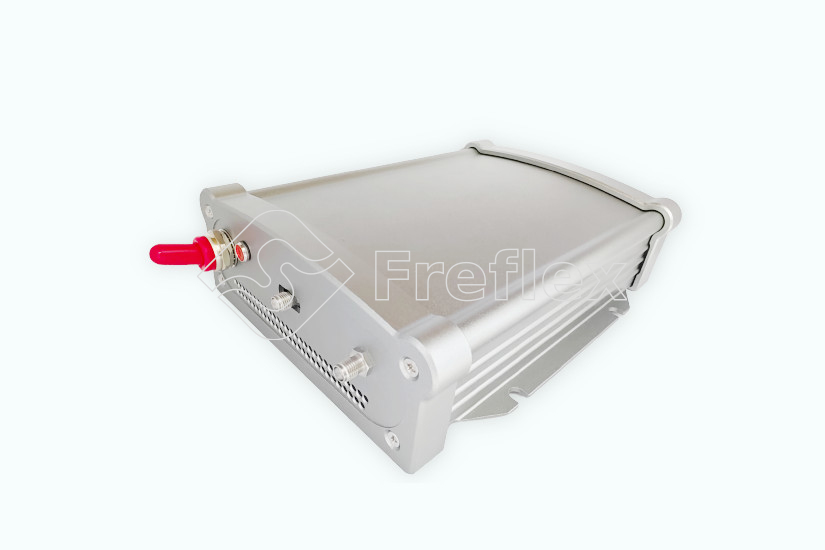

Freflex supplies Low Noise Amplifier Systems from DC to 110GHz, and the noise figure can be as low as 0.7 dB.
Features:
- Broad Band
- Low Noise
Applications:
- Wireless
- Receiver
- Laboratory Test
- Radar
| Part Number | Frequency (GHz) |
Noise Figure (dBm, Max.) |
Output Power (dBm, Min.) |
Gain (dB, Min.) |
Gain Flatness (±dB, typ.) |
Voltage (VDC) |
VSWR (Max.) |
Lead Time （Weeks) |
|---|---|---|---|---|---|---|---|---|
| FLAS-0.01-15000-12-70 | 0.00001~15 | 7 | 12 | 12 | ±3 | 220 | 2 | 2~8 |
| FLAS-0.03-40000-54-60 | 0.00003~40 | 6 | 10 | 54 | ±3 | 220 | 1.8 | 2~8 |
| FLAS-0.1-500-24-30 | 0.0001~0.5 | 3 | 5 | 24 | ±0.5 | 220 | 1.5 | 2~8 |
| FLAS-0.1-500-30-30 | 0.0001~0.5 | 3 | 5 | 30 | ±0.5 | 220 | 1.5 | 2~8 |
| FLAS-10-60-15-50 | 0.01~0.06 | 5 | 23 | 15 | ±1.0 | 220 | 1.5 | 2~8 |
| FLAS-10-60-16-50 | 0.01~0.06 | 5 | 23 | 16 | ±1.5 | 220 | - | 2~8 |
| FLAS-10-8000-40-20 | 0.01~8 | 2 | 18 | 40 | ±3 | 220 | 2 | 2~8 |
| FLAS-10-18000-50-40 | 0.01~18 | 4(0.2~18GHz) | 10 | 50 | ±3 | 220 | 2.5 | 2~8 |
| FLAS-25-1000-50-13 | 0.025~1 | 1.3 | 14 | 50 | - | 220 | 2.5 | 2~8 |
| FLAS-30-1000-50-13 | 0.03~1 | 1.3 | 15 | 50 | ±2.5 | 220 | 1.5 | 2~8 |
| FLAS-30-6000-25-50 | 0.03~6 | 5 | 10 | 25 | ±3 | 220 | 2 | 2~8 |
| FLAS-50-90-15-32 | 0.05~0.09 | 3.2 | 10 | 15 | ±0.2 | 220 | 1.5 | 2~8 |
| FLAS-50-4000-20-15 | 0.05~4 | 1.5(typ.) | 20(typ.) | 20(typ.) | 1.5 | 80~270 | 1.5 | 2~8 |
| FLAS-50-6000-25-40 | 0.05~6 | 4 | 22 | 25 | ±3 | 220 | 2 | 2~8 |
| FLAS-100-6000-25-25 | 0.1~6 | 2.5 | 15 | 25 | ±2 | 220 | 1.5 | 2~8 |
| FLAS-100-12000-25-25 | 0.1~12 | 2.5 | 15 | 25 | ±2 | 220 | 1.5 | 2~8 |
| FLAS-100-15000-45-22 | 0.1~15 | 2.2 | 5 | 45 | ±2.5 | 220 | 1.5 | 2~8 |
| FLAS-100-18000-35-40 | 0.1~18 | 4 | 10 | 35 | ±3 | 220 | 2.5 | 2~8 |
| FLAS-100-20000-25-40 | 0.1~20 | 4 | 20 | 25(typ.) | 1.5 | 220 | 3 | 2~8 |
| FLAS-100-26500-30-55 | 0.1~26.5 | 5.5 | 20 | 30 | ±3 | 220 | 2 | 2~8 |
| FLAS-200-6000-42-13 | 0.2~6 | 1.3 | 15 | 42 | ±2 | 220 | 2 | 2~8 |
| FLAS-400-8000-40-25 | 0.4~8 | 2.5 | 14 | 40 | ±1.5 | 110 | 1.8 | 2~8 |
| FLAS-500-8000-20-25 | 0.5~8 | 2.5 | 20 | 20 | ±2 | 220 | 2 | 2~8 |
| FLAS-500-18000-40-30 | 0.5~18 | 3 | 10 | 40 | ±1.5 | 220 | 2.5 | 2~8 |
| FLAS-500-18000-40-35 | 0.5~18 | 3.5 | 12 | 40 | ±2 | 220 | 2 | 2~8 |
| FLAS-500-18000-45-30 | 0.5~18 | 3 | 10 | 45 | ±1.5 | 220 | 2 | 2~8 |
| FLAS-700-1100-20-25 | 0.7～1.1 | 2.5 | 13 | 20 | ±1 | 220 | 1.5 | 2~8 |
| FLAS-700-1100-25-25 | 0.7～1.1 | 2.5 | 13 | 25 | ±1.5 | 220 | - | 2~8 |
| FLAS-700-8000-30-25 | 0.7~8 | 2.5 | 13 | 30 | ±2 | 220 | 2 | 2~8 |
| FLAS-800-18000-25-35 | 0.8～18 | 3.5 | 13 | 25 | ±2.5 | 220 | 2 | 2~8 |
| FLAS-950-2150-20-20 | 0.95～2.15 | 2 | 15 | 20 | ±1.5 | 220 | 2 | 2~8 |
| FLAS-1000-2000-30-20 | 1～2 | 2 | 15 | 30 | ±1.5 | 220 | 2 | 2~8 |
| FLAS-1000-5000-25-40 | 1~5 | 4 | 20 | 25 | - | 110 | 1.8 | 2~8 |
| FLAS-1000-12000-30-20 | 1~12 | 2(typ.) | 18(typ.) | 30 | ±1 | 85~265 | 1.6(typ.) | 2~8 |
| FLAS-1000-12000-45-20 | 1～12 | 2(typ.) | 19(typ.) | 45(typ.) | ±2 | 85~265 | 2(typ.) | 2~8 |
| FLAS-1000-18000-30-20 | 1~18 | 2(typ.) | 18(typ.) | 27, 30(typ.) | ±1 | 85~265 | 2(typ.) | 2~8 |
| FLAS-1000-18000-45-20 | 1~18 | 2(typ.) | 19(typ.) | 45(typ.) | ±2 | 85~265 | 2(typ.) | 2~8 |
| FLAS-1000-18000-55-22 | 1~18 | 2.2 | 10 | 55 | ±1.5 | 220 | 2.5 | 2~8 |
| FLAS-1000-20000-25-35 | 1~20 | 3.5 | 21 | 25 | ±2.5 | 220 | 2 | 2~8 |
| FLAS-1000-20000-40-40 | 1~20 | 4 | 16 | 40 | ±2 | 220 | 1.5 | 2~8 |
| FLAS-1000-40000-40-50 | 1~40 | 5 | 16(Psat) | 40 | ±4.5 | 220 | 3 | 2~8 |
| FLAS-2000-8000-20-40 | 2~8 | 4 | 8 | 20 | ±1.5 | 220 | 1.6 | 2~8 |
| FLAS-2000-18000-18-30 | 2~18 | 3 | 10 | 18 | ±1.5 | 220 | 1.5 | 2~8 |
| FLAS-2000-18000-28-30 | 2~18 | 3 | 10 | 28 | ±1.5 | 220 | 1.5 | 2~8 |
| FLAS-2000-26500-25-40 | 2~26.5 | 4 | 8 | 25 | ±2 | 220 | 1.8 | 2~8 |
| FLAS-2000-26500-48-50 | 2~26.5 | 5 | 10 | 48 | ±4.5 | 220 | 2.5 | 2~8 |
| FLAS-3000-12000-24-30 | 3~12 | 3 | 21 | 24 | ±1.5 | 220 | 1.5 | 2~8 |
| FLAS-3000-15000-15-30 | 3~15 | 3 | 8 | 15 | ±1.0 | 220 | 1.5 | 2~8 |
| FLAS-5400-5900-35-08 | 5.4~5.9 | 0.8 | 10 | 35 | ±0.3 | 220 | 1.4 | 2~8 |
| FLAS-6000-18000-25-50 | 6~18 | 5 | 10 | 25 | ±3 | 220 | 2 | 2~8 |
| FLAS-6000-18000-50-30 | 6~18 | 3 | 15 | 50 | ±1.5 | 220 | 2 | 2~8 |
| FLAS-6000-40000-45-35 | 6~40 | 3.5 | 10 | 45 | ±2.5 | 220 | 2 | 2~8 |
| FLAS-6000-40000-55-35 | 6~40 | 3.5 | 10 | 55 | ±3.5 | 220 | 2 | 2~8 |
| FLAS-8000-12000-15-40 | 8~12 | 4 | 13 | 15 | ±0.5 | 220 | 1.5 | 2~8 |
| FLAS-8000-18000-20-40 | 8~18 | 4 | 8 | 20 | ±1.5 | 220 | 1.6 | 2~8 |
| FLAS-8000-26500-15-35 | 8~26.5 | 3.5 | 8 | 15 | ±1.5 | 220 | 1.5 | 2~8 |
| FLAS-8000-26500-40-65 | 8~26.5 | 6.5 | 18 | 40 | ±2 | 220 | 2 | 2~8 |
| FLAS-12000-18000-20-40 | 12~18 | 4 | 15 | 20 | ±1.5 | 220 | 1.5 | 2~8 |
| FLAS-12000-40000-30-40 | 12~40 | 4 | 5 | 30 | ±2.5 | 220 | 2.5 | 2~8 |
| FLAS-16000-22000-35-25 | 16~22 | 2.5 | 19 | 35 | ±1.5 | 220 | 2 | 2~8 |
| FLAS-16000-40000-20-35 | 16~40 | 3.5 | 16 | 20 | ±2 | 220 | 2 | 2~8 |
| FLAS-17500-20200-20-20 | 17.5~20.2 | 2 | 2 | 20 | ±0.5 | 220 | 1.5 | 2~8 |
| FLAS-17700-21200-30-80 | 17.7~21.2 | 8 | 10 | 30 | ±2 | 220 | 2 | 2~8 |
| FLAS-18000-26500-30-40 | 18~26.5 | 4 | 5 | 30 | ±1 | 220 | 1.8 | 2~8 |
| FLAS-18000-26500-45-32 | 18~26.5 | 3.2 | 10 | 45 | ±2 | 220 | 1.8 | 2~8 |
| FLAS-18000-28000-20-40 | 18~28 | 4 | 8 | 20 | ±1.5 | 220 | 1.6 | 2~8 |
| FLAS-18000-28000-28-30 | 18~28 | 3 | 5 | 28 | ±1.5 | 220 | 1.8 | 2~8 |
| FLAS-18000-40000-25-50 | 18~40 | 5 | 10 | 25 | ±3 | 220 | 2 | 2~8 |
| FLAS-18000-40000-25-50(P15) | 18~40 | 5 | 15 | 25 | ±2.5 | 220 | 2 | 2~8 |
| FLAS-18000-40000-30-50(P20) | 18~40 | 5 | 20 | 30 | ±2.5 | 220 | 2.5 | 2~8 |
| FLAS-18000-40000-40-35 | 18~40 | 3.5 | 8 | 40 | ±2.5 | 220 | 2.5 | 2~8 |
| FLAS-18000-40000-40-45 | 18~40 | 4.5 | 6 | 40 | ±2.5 | 220 | 2 | 2~8 |
| FLAS-18000-40000-45-40 | 18~40 | 4 | 10 | 45 | 3.5 | 220 | 2 | 2~8 |
| FLAS-18000-40000-50-45 | 18~40 | 4.5 | 5 | 50 | ±3 | 220 | 2 | 2~8 |
| FLAS-18000-40000-55-40 | 18~40 | 4.0 | 10 | 55 | ±3.5 | 110~220 | 2 | 2~8 |
| FLAS-20000-32000-40-25 | 20~32 | 2.5 | 10 | 40 | ±2.5 | 220 | 2 | 2~8 |
| FLAS-23000-25000-35-20 | 23~25 | 2 | -3 | 35 | ±1.5 | 220 | 1.8 | 2~8 |
| FLAS-23000-40000-34-35 | 23~40 | 3.5 | 10 | 34 | ±2.5 | 220 | 2 | 2~8 |
| FLAS-25300-27200-50-18 | 25.3~27.2 | 1.8 | 5 | 50 | ±1 | 220 | 1.5 | 2~8 |
| FLAS-26000-30000-25-50 | 26~30 | 5 | 20 | 25 | - | 110 | 1.8 | 2~8 |
| FLAS-26500-40000-20-30 | 26.5~40 | 3 | 5 | 20 | ±1.5 | 220 | 1.5 | 2~8 |
| FLAS-39000-41000-30-32 | 39~41 | 3.2 | 10 | 30 | ±0.5 | 220 | 2 | 2~8 |
| FLAS-40000-53000-40-50 | 40~53 | 5 | 10 | 40 | ±2 | 220 | 2 | 2~8 |
| FLAS-40000-60000-35-70 | 40~60 | 7 | 20 | 35 | ±2.5 | 220 | 2 | 2~8 |
| FLAS-50000-59000-40-55 | 50~59 | 5.5 | 10 | 40 | ±1 | 220 | 2 | 2~8 |
| FLAS-57000-67000-30-50 | 57~67 | 5 | 10 | 30 | - | 220 | 2 | 2~8 |
