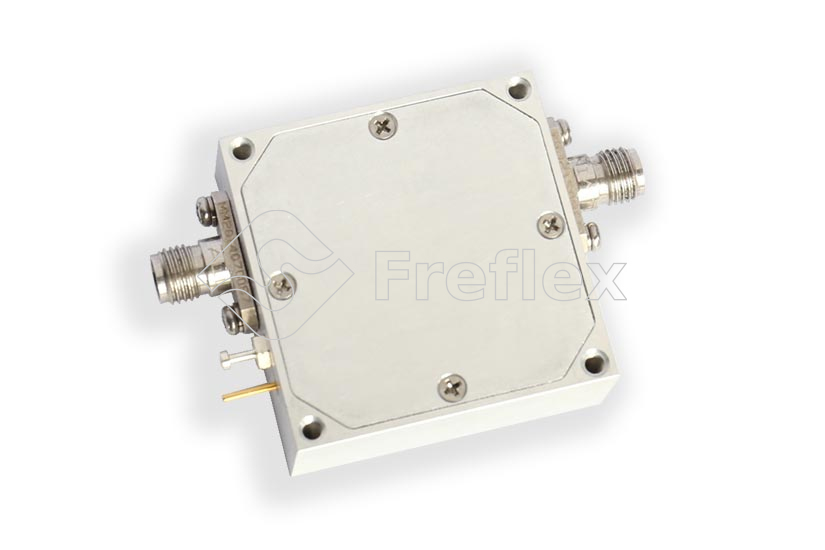

Power Amplifiers

Freflex supplies Power Amplifiers from DC to 230GHz, and the power is up to 1000W.

Features:
  • Broad Band
  • High Power
Applications:
  • Wireless
  • Transmitter
  • Laboratory Test
Power Amplifiers
Part Number Frequency
(GHz)		 Psat
(dBm, Min.)		 P1dB
(dBm, Min.)		 Gain
(dB, Min.)		 Gain Flatness
(±dB, typ.)		 Voltage
(VDC)		 VSWR
(Max.)		 Lead Time
（Weeks)
FPA-9K-250-47-47S 9K~0.25 47 - 47 4±1 32 2 2~8
FPA-0.02-30-48-50S 20K~0.03 50 - 48 2±1 32 2 2~8
FPA-0.02-30-53-53S 20K~0.03 53 - 53 2±1 36 2 2~8
FPA-0.1-400-48-47 0.0001~0.4 - 47 48 3±1 32 2 2~8
FPA-0.1-400-48-47.8S 0.0001~0.4 47.8 - 48 4±1 32 2 2~8
FPA-0.1-400-48-50S 0.0001~0.4 50 - 48 4±1 32 2 2~8
FPA-0.1-500-40-40 0.0001~0.5 - 40 40 4±1(max.) 28~30 1.8 2~8
FPA-0.1-3000-25-26 0.0001~3 - 26 25 ±4 28 2 2~8
FPA-1-60-23-23 0.001~0.06 - 23 23 - 5 1.8 2~8
FPA-1-200-40-40 0.001~0.2 - 40 40 1±1(max.) 28 1.7 2~8
FPA-1-300-50-50S 0.001~0.3 50 - 50 2±1 28 1.7 2~8
FPA-1-500-45-47S 0.001~0.5 47 - 45 2±1 32 1.8 2~8
FPA-1.5-30-33-33 0.0015~0.03 - 33 33 1±1 28 1.8 2~8
FPA-1.5-30-40-40S 0.0015~0.03 40 - 40 1±1 28 1.8 2~8
FPA-1.5-30-43-45S 0.0015~0.03 45 - 43 1±1 28 1.8 2~8
FPA-1.5-30-50-47S 0.0015~0.03 47 - 50 1±1 28 1.7 2~8
FPA-1.5-30-50-50S 0.0015~0.03 50 - 50 1±1 28 1.7 2~8
FPA-1.5-100-38-37S 0.0015~0.1 37 - 38 1±1 28 1.8 2~8
FPA-1.6-30-43-44S 0.0016~0.03 44 - 43 1±1 28 1.8 2~8
FPA-1.6-30-56-56S 0.0016~0.03 56 - 56 1±1 48 1.7 2~8
FPA-1.6-400-43-43S 0.0016~0.4 43 - 43 2±1 28 1.8 2~8
FPA-2-30-47-50S 0.002~0.03 50 - 47 2±1 28 1.7 2~8
FPA-2-30-52-50S 0.002~0.03 50 - 52 1±1 32 1.7 2~8
FPA-2-30-58-60S 0.002~0.03 60 - 58 ±2 50 2 2~8
FPA-2-300-50-50S 0.002~0.3 50 - 50 1.5±1 28 1.7 2~8
FPA-5-500-29-33 0.005~0.5 - 33 29 2 28 2(typ.) 2~8
FPA-5-500-46-37S 0.005~0.5 37 - 46 1±2 28~30 2 2~8
FPA-8-100-50-50S 0.008~0.1 50 - 50 3 28 1.6 2~8
FPA-10-20-60-60S 0.01~0.02 60 - 60 1±1 48 1.7 2~8
FPA-10-30-52-51.7S 0.01~0.03 51.7 - 52 2±1 36 1.7 2~8
FPA-10-30-60-60S 0.01~0.03 60 - 60 1±1 48 1.7 2~8
FPA-10-30-63-60S 0.01~0.03 60 - 63 1±1 48 1.7 2~8
FPA-10-100-40-37S 0.01~0.1 37 - 40 1±1 28 1.6 2~8
FPA-10-150-47-47S 0.01~0.15 47 - 47 1±1 28 1.7 2~8
FPA-10-500-43-44S 0.01~0.5 44 - 43 1±1 28 1.8 2~8
FPA-10-500-52-51.7S 0.01~0.5 51.7 - 52 2±1 36 1.7 2~8
FPA-10-600-53-54S 0.01~0.6 54 - 53 4±1 48 1.8 2~8
FPA-10-600-63-53S 0.01~0.6 53 - 63 4±1 48 1.7 2~8
FPA-10-1000-49-50S 0.01~1 50 - 49 3±1 32 1.6 2~8
FPA-10-2500-30-37S 0.01~2.5 37 - 30 ±3.5 32 2.4 2~8
FPA-10-3000-30-29 0.01~3 - 29 30 ±2 24 2 2~8
FPA-10-3000-30-29-1 0.01~3 - 29 30 ±2 24 2 2~8
FPA-20-100-50-50S 0.02~0.1 50 - 50 2±0.5 28 1.6 2~8
FPA-20-150-50-50S 0.02~0.15 50 - 50 2±0.5 28 1.6 2~8
FPA-20-500-40-50S 0.02~0.5 50 - 40 ±2.5 32 2 2~8
FPA-20-500-53-53S 0.02~0.5 53 - 53 3±1 48 2 2~8
FPA-20-500-55-50S 0.02~0.5 50 47 55 3±1(max.) 28~32 1.6 2~8
FPA-20-500-55-54.8S 0.02~0.5 54.8(typ.) - 55 3±1 42~48 1.7 2~8
FPA-20-512-40-44.8S 0.02~0.512 44.8 - 40 2±1 28 1.8 2~8
FPA-20-512-47-47S 0.02~0.512 47 - 47 2±1 28 1.8 2~8
FPA-20-512-49-50S 0.02~0.512 50 - 49 4±1 28 1.7 2~8
FPA-20-700-53-54S 0.02~0.7 54 - 53 3±1 36 1.8 2~8
FPA-20-1000-36-18 0.02~1 - 18 36 ±2.5 5 2 2~8
FPA-20-1000-43-43S 0.02~1 43 - 43 3±1 28 1.8 2~8
FPA-20-1000-53-53S 0.02~1 53 - 53 4±0.5 32 1.7 2~8
FPA-20-2000-40-40S 0.02~2 40 - 40 3±1 28~32 2 2~8
FPA-20-3000-40-40S 0.02~3 40(typ.) 37 40 ±2.5 28 1.6(typ.) 2~8
FPA-20-6000-40-36 0.02~6 38 36 40 ±4 15 2.5 2~8
FPA-25-500-47-47S 0.025~0.5 47 - 47 3±1 28 1.7 2~8
FPA-25-500-49-50S 0.025~0.5 50 - 49 2±1 28 1.6 2~8
FPA-25-530-48.5-51.8S 0.025~0.53 51.8 - 48.5 ±1.5 28 1.5 2~8
FPA-30-80-16-23 0.03~0.08 23 - 16 ±1 12 1.8 2~8
FPA-30-82-50-50S 0.03~0.082 50 - 50 2±1 32 1.7 2~8
FPA-30-88-40-40S 0.03~0.088 40 - 40 1±0.5 28 1.8 2~8
FPA-30-100-43-44S 0.03~0.1 44 - 43 1±1 28 1.8 2~8
FPA-30-100-47-50S 0.03~0.1 50 - 47 1±1 28 1.7 2~8
FPA-30-100-52-51.7S 0.03~0.1 51.7 - 52 2±1 36 1.7 2~8
FPA-30-200-50-50S 0.03~0.2 50 - 50 2±1 28 1.7 2~8
FPA-30-300-40-40S 0.03~0.3 40 - 40 1±1 28 1.8 2~8
FPA-30-300-43-43S 0.03~0.3 43 - 43 2±1 28 1.8 2~8
FPA-30-300-47-47S 0.03~0.3 47 - 47 2±1 28 1.7 2~8
FPA-30-300-47-50S 0.03~0.3 50 - 47 2±1 28 1.7 2~8
FPA-30-500-32-37S 0.03~0.5 37 - 32 ±1.5 12 2 2~8
FPA-30-500-47-47S 0.03~0.5 47 - 47 3±1 28 1.7 2~8
FPA-30-500-48-50S 0.03~0.5 50 - 48 3±1 28 1.7 2~8
FPA-30-512-40-43S 0.03~0.512 43 - 40 2±1 28 1.8 2~8
FPA-30-512-40-44.8S 0.03~0.512 44.8 - 40 2±1 28 1.8 2~8
FPA-30-512-43-43S 0.03~0.512 43 - 43 2±1 28 1.8 2~8
FPA-30-512-43-44.8S 0.03~0.512 44.8 - 43 2±1 28 1.8 2~8
FPA-30-512-52-50S 0.03~0.512 50 - 52 ±2 28 2 2~8
FPA-30-520-47-47S 0.03~0.52 47 - 47 2±1 28 1.7 2~8
FPA-30-520-50-50S 0.03~0.52 50 - 50 2±1 28 1.7 2~8
FPA-30-678-40-40S 0.03~0.678 40 - 40 2±1 28 1.8 2~8
FPA-30-678-53-54S 0.03~0.678 54 - 53 3±1 36~38 1.8 2~8
FPA-30-800-44-44.8S 0.03~0.8 44.8 - 44 4±1(max.) 28 1.8 2~8
FPA-30-1000-16-23 0.03~1 23 - 16 ±1 12 1.8 2~8
FPA-30-1000-38-43S 0.03~1 43 - 38 3±1 28 1.8 2~8
FPA-30-1000-45-30S 0.03~1 30 - 45 ±2.5 28 2 2~8
FPA-30-1000-46-47S 0.03~1 47 - 46 5±1 28 1.7 2~8
FPA-30-1000-48-50S 0.03~1 50 - 48 3±1 32 1.7 2~8
FPA-30-1000-50-51.7S 0.03~1 51.7 - 50 4±1 32 1.8 2~8
FPA-30-1000-53-53S 0.03~1 53 - 53 3±1 32 1.8 2~8
FPA-30-2000-40-40S 0.03~2 40 - 40 3±1 28~32 2 2~8
FPA-40-80-43-44S 0.04~0.08 44 - 43 1±1 28 1.8 2~8
FPA-50-320-47-47S 0.05~0.32 47 - 47 1±1 28 1.8 2~8
FPA-50-1000-26-35 0.05~1 - 35 26 ±1 28 - 2~8
FPA-50-1000-45-47S 0.05~1 47 - 45 4±1 28 1.8 2~8
FPA-70-512-47-47S 0.07~0.512 47 - 47 3±1 28 1.6 2~8
FPA-70-2000-46-47S 0.07~2 47 - 46 2±1 28 2 2~8
FPA-80-1000-48-50S 0.08~1 50 - 48 53±1 32 1.7 2~8
FPA-80-1000-53-53S 0.08~1 53 - 53 5±1 32 2 2~8
FPA-88-110-50-50S 0.088~0.11 50 - 50 1±0.5 28 1.7 2~8
FPA-90-1500-46-47S 0.09~1.5 47 - 46 4±1 28 2 2~8
FPA-100-200-49-50S 0.1~0.2 50 - 49 1±1 28 1.7 2~8
FPA-100-320-52-51.7S 0.1~0.32 51.7 - 52 1±1 36 1.7 2~8
FPA-100-400-49-50S 0.1~0.4 50 - 49 3±0.5 28 1.7 2~8
FPA-100-500-30-40S 0.1~0.5 40 - 30 ±1 28 2 2~8
FPA-100-500-46-47S 0.1~0.5 47 - 46 3±1 28 1.7 2~8
FPA-100-500-49-50S 0.1~0.5 50 - 49 3±0.5 28 1.7 2~8
FPA-100-600-46-47S 0.1~0.6 47 - 46 2±1 28 1.7 2~8
FPA-100-1000-49-47S 0.1~1 47 - 49 4±1 28 2 2~8
FPA-100-1000-49-50S 0.1~1 50 - 49 3±1 32 1.6 2~8
FPA-100-1500-46-47S 0.1~1.5 47 - 46 4±1 28 2 2~8
FPA-100-2500-40-40S 0.1~2.5 40 - 40 4±1 28 2 2~8
FPA-100-3000-45-43S 0.1~3 43 - 45 7±2 28 2.5 2~8
FPA-100-4000-60-20 0.1~4 - 20 60 ±3 5 2 2~8
FPA-150-500-49-50S 0.15~0.5 50 - 49 3±0.5 28 1.6 2~8
FPA-200-300-42-40S 0.2~0.3 40 - 42 ±1 28 2 2~8
FPA-200-512-53-53S 0.2~0.512 53 - 53 2±1 32 1.8 2~8
FPA-200-1000-49-50S 0.2~1 50 - 49 2±1 32 1.6 2~8
FPA-200-1500-46-47S 0.2~1.5 47 - 46 4±1 28 2 2~8
FPA-225-512-43-44S 0.225~0.512 44 - 43 0±1 28 1.8 2~8
FPA-225-900-48-50S 0.225~0.9 50 - 48 2±1 28 1.7 2~8
FPA-300-400-49-50S 0.3~0.4 50 - 49 3±0.5 28 1.7 2~8
FPA-300-500-52-51.7S 0.3~0.5 51.7 - 52 1±1 36 1.7 2~8
FPA-300-800-43-43S 0.3~0.8 43 - 43 2±1 28 1.8 2~8
FPA-300-1000-49-50S 0.3~1 50 - 49 3±1 28 1.7 2~8
FPA-300-1000-52-51.7S 0.3~1 51.7 - 52 4±1 32 1.8 2~8
FPA-300-8000-12-27 0.3~8 - 27 12 ±2 12 2 2~8
FPA-350-1000-53-53S 0.35~1 53 - 53 3±1 32 1.8 2~8
FPA-400-470-50-50S 0.4~0.47 50 - 50 1±0.5 28 1.5 2~8
FPA-400-500-49-50S 0.4~0.5 50 - 49 1±1 28 1.7 2~8
FPA-400-800-40-40S 0.4~0.8 40 - 40 2±1 28 1.8 2~8
FPA-400-800-50-50S 0.4~0.8 50 - 50 3±1 28 1.7 2~8
FPA-400-2500-47-44.8S 0.4~2.5 44.8 - 47 5±1 28 2.5 2~8
FPA-400-6000-30-25 0.4~6 - 25 30 ±2 12 2 2~8
FPA-400-6000-33-33S 0.4~6 33 - 33 2±2 28 1.7 2~8
FPA-400-8000-40-22 0.4~8 - 22 40 ±1.5 12 1.8 2~8
FPA-410-950-45-47S 0.41~0.95 47 - 45 ±2 28 2 2~8
FPA-500-600-53-54.8S 0.5~0.6 54.8 - 53 3±1 36 1.8 2~8
FPA-500-1000-47-47S 0.5~1 47 - 47 3±1 28 1.7 2~8
FPA-500-1000-49-52S 0.5~1 52 - 49 ±1 28 1.5 2~8
FPA-500-1000-50-47S 0.5~1 47 - 50 3±1 28 1.7 2~8
FPA-500-1000-52-52S 0.5~1 52 - 52 3±1 36 2 2~8
FPA-500-1000-53-53S 0.5~1 53 - 53 2±1 32 2 2~8
FPA-500-1300-49-50S 0.5~1.3 50 - 49 3±1 32 2 2~8
FPA-500-1700-49-50S 0.5~1.7 50 - 49 3±1 32 2 2~8
FPA-500-1800-50-50S 0.5~1.8 50 - 50 3±1 28~32 2 2~8
FPA-500-1810-55-50S 0.5~1.81 50 47 55 3±1(max.) 32 2 2~8
FPA-500-2000-30-40S 0.5~2 40 - 30 ±2 28 2 2~8
FPA-500-2000-46-47S 0.5~2 47 - 46 4±2 28 2.6 2~8
FPA-500-2000-50-50S 0.5~2 50 - 50 3±1 32 2 2~8
FPA-500-2500-46-43 0.5~2.5 - 43 46 ±2.5 28 2 2~8
FPA-500-2500-46-47S 0.5~2.5 47 - 46 4±2 28 2.6 2~8
FPA-500-2500-47-44.8S 0.5~2.5 44.8 - 47 4±1 28 2.6 2~8
FPA-500-2500-47-50S 0.5~2.5 50 - 47 4±1 28~32 2 2~8
FPA-500-2500-48-50S 0.5~2.5 50 - 48 3±1 32 2 2~8
FPA-500-2700-47-47S 0.5~2.7 47 - 47 2±1 32 1.8 2~8
FPA-500-2700-47-50S 0.5~2.7 50 - 47 4±1 28~32 2 2~8
FPA-500-2700-50-50S 0.5~2.7 50 - 50 3±1(Max.) 32 VCC 2 2~8
FPA-500-3000-47-46S 0.5~3 46 - 47 ±3 32 2.4 2~8
FPA-500-3000-47-50S 0.5~3 50 - 47 4±1 28~32 2 2~8
FPA-500-4000-46-47S 0.5~4 47 - 46(typ.) 3 30 2.4(typ.) 2~8
FPA-500-6000-37-40S 0.5~6 40 37.7 37 3±2 28~32 2 2~8
FPA-500-6000-40-40S 0.5~6 40 39 40 3±1 28~32 2 2~8
FPA-600-12000-30-20 0.6~12 - 20 30 ±1 12 1.8 2~8
FPA-617-894-42-48S 0.617~0.894 48 - 42 ±2 32 2 2~8
FPA-700-2700-47-50S 0.7~2.7 50 - 47 4±1 32 2 2~8
FPA-700-4200-43-40S 0.7~4.2 40 37 43 3±1 28~32 2 2~8
FPA-700-6000-37-40S 0.7~6 40 37 37 3±2 28~32 2 2~8
FPA-703-748-34.25-33 0.703~0.748 - 33 34.25 ±0.75 12 2 2~8
FPA-791-821-45-40 0.791~0.821 - 40 45 ±0.5 30 2 2~8
FPA-800-2000-42-43S 0.8~2 43 39 42 2±1(max.) 28~32 2 2~8
FPA-800-4200-47-46.5S 0.8~4.2 46.5 - 47 ±2.5 32 2 2~8
FPA-800-18000-40-35S 0.8~18 35 32(typ.) 40 3 28 2 2~8
FPA-925-960-42-48S 0.925~0.960 48 - 42 ±2 32 2 2~8
FPA-950-2150-21-37S 0.95~2.15 37 - 21 2±1(max.) 28~30 2 2~8
FPA-950-2150-25-25 0.95~2.15 - 25 25 ±1.5 5 2 2~8
FPA-1000-2500-52-53S 1~2.5 53 - 52 3±1(max.) 36 1.8 2~8
FPA-1000-4000-43-40S 1~4 40 - 43 ±2.5 32 2 2~8
FPA-1000-6000-42-37S 1~6 37 - 42 3±1 24~28 2 2~8
FPA-1000-6000-48-47S 1~6 47 - 48 4±1(max.) 28 2 2~8
FPA-1000-18000-35-30 1~18 - 30 35 ±2 12 2 2~8
FPA-1000-26500-28-24 1~26.5 - 24 28 ±1.5 12 2 2~8
FPA-1100-1700-48-47S 1.1~1.7 47 - 48 ±1.5 32 2 2~8
FPA-1300-1700-49-50S 1.3~1.7 50 - 49 3±1 32 2 2~8
FPA-1400-1600-47-44.8S 1.4~1.6 44.8 - 47 1±1 28 1.5 2~8
FPA-1500-1600-47-47S 1.5~1.6 47 - 47 - 28 1.7 2~8
FPA-1500-1700-47-50S 1.5~1.7 50 - 47 - 28 1.7 2~8
FPA-1500-1700-48-47S 1.5~1.7 47 - 48 ±1.5 32 2 2~8
FPA-1500-1700-48-50S 1.5~1.7 50 - 48 ±1.5 32 2 2~8
FPA-1500-3000-45-47S 1.5~3 47 - 45 2±1 30 2 2~8
FPA-1500-5000-30-34 1.5~5 - 34 30 ±5 32 2.4 2~8
FPA-1515-1630-48-50S 1.515~1.63 50 - 48 1±1 28 1.5 2~8
FPA-1550-1600-47-47S 1.55~1.6 47 - 47 - 28 1.7 2~8
FPA-1550-1630-48-50S 1.55~1.63 50 - 48 1±1 28 1.5 2~8
FPA-1700-2200-48-50S 1.7~2.2 50 - 48 - 28 1.7 2~8
FPA-1700-2500-50-50S 1.7~2.5 50 - 50 3±1 28~32 2 2~8
FPA-1710-1785-35-33 1.71~1.785 - 33 35 ±0.75 12 2 2~8
FPA-1800-1900-53-53S 1.8~1.9 53 - 53 1±1 28 1.7 2~8
FPA-1800-2200-46-45S 1.8~2.2 45 - 46 ±1 30 1.5 2~8
FPA-1800-2700-50-50S 1.8~2.7 50 - 50 3±1 28~32 2 2~8
FPA-1800-2700-55-50S 1.8~2.7 50 47 55 3±1(max.) 32 2 2~8
FPA-1805-1880-35-33 1.805~1.88 - 33 35 ±0.75 28 2 2~8
FPA-1805-1880-42-48S 1.805~1.88 48 - 42 ±2 32 2 2~8
FPA-1805-1880-45-40 1.805~1.88 - 40 45 ±0.75 30 2 2~8
FPA-1805-2170-47-50S 1.805~2.17 50 - 47 - 28 1.6 2~8
FPA-1920-1960-35-40 1.92~1.96 - 40 35 ±0.5 220 2 2~8
FPA-1920-1980-34-33 1.92~1.98 - 33 34 ±1 12 2 2~8
FPA-2000-2300-47-50 2~2.3 - 50 47 - 28 1.6 2~8
FPA-2000-3000-33-33 2~3 - 33 33 ±3 30~32 2 2~8
FPA-2000-3000-50-50S 2~3 50 - 50 2±1 28~32 2 2~8
FPA-2000-3500-46-42S 2~3.5 42 - 46 - 28 2 2~8
FPA-2000-4000-47-47S 2~4 47 - 47 2±1 32 2 2~8
FPA-2000-4000-50-50S 2~4 50 - 50 2±1 28~32 1.8 2~8
FPA-2000-4200-43-43S 2~4.2 43 - 43 3±1 28~32 2 2~8
FPA-2000-6000-35-33S 2~6 33 - 35 ±4 28 2 2~8
FPA-2000-6000-40-39 2~6 - 39 40 ±2.5 28 2 2~8
FPA-2000-6000-40-40S 2~6 40 - 40 3±1 28 2 2~8
FPA-2000-6000-43-41.7S 2~6 41.7 - 43 5±1 28 2 2~8
FPA-2000-6000-47-43S 2~6 43 - 47 4±1 28 2 2~8
FPA-2000-6000-47-47S 2~6 47 - 47 4±1 28 2 2~8
FPA-2000-6000-47-49S 2~6 49 - 47 10±1 28 2 2~8
FPA-2000-6000-50-50S 2~6 50 - 50 4±1 28 2 2~8
FPA-2000-8000-33-33S 2~8 33 - 33 ±3 28 3 2~8
FPA-2000-18000-40-40S 2~18 40 - 40 ±3 32 2 2~8
FPA-2000-18000-40-47S 2~18 47 - 40 ±6 28 2 2~8
FPA-2110-2170-47-47S 2.11~2.17 47 - 47 1±1(max.) 28 1.7 2~8
FPA-2110-2170-50-50S 2.11~2.17 50 - 50 1±1(max.) 28 1.7 2~8
FPA-2200-2300-49-50S 2.2~2.3 50 - 49 - 28 1.7 2~8
FPA-2200-2400-40-40S 2.2~2.4 40 - 40 1±1 28 1.8 2~8
FPA-2290-2380-25-47 2.29~2.38 50 47 25 - 28 1.8 2~8
FPA-2300-2400-40-40S 2.3~2.4 40 - 40 1±1 28 1.6 2~8
FPA-2300-2700-30-42S 2.3~2.7 42 - 30 3 28 - 2~8
FPA-2300-2700-47-47S 2.3~2.7 47 - 47 2±1 28 1.7 2~8
FPA-2300-2700-47-50S 2.3~2.7 50 - 47 2±1 28 1.7 2~8
FPA-2300-4200-53-47.8S 2.3~4.2 47.8 - 53 ±2.5 50 2 2~8
FPA-2400-2500-40-40S 2.4~2.5 40 - 40 1±0.5 28~32 1.6 2~8
FPA-2400-2500-48-50S 2.4~2.5 50 - 48 1±1 28 1.7 2~8
FPA-2500-2570-34-33 2.5~2.57 - 33 34 ±1 12 2 2~8
FPA-2500-2700-50-47.8S 2.5~2.7 47.8 - 50 ±1 32 2 2~8
FPA-2570-2620-45-40 2.57~2.62 - 40 45 ±0.75 30 2 2~8
FPA-2620-2690-45-40 2.62~2.69 - 40 45 ±0.75 30 2 2~8
FPA-2620-2690-47-47S 2.62~2.69 47 - 47 1±1(max.) 28 1.7 2~8
FPA-2620-2690-50-50S 2.62~2.69 50 - 50 1±1(max.) 28 1.7 2~8
FPA-2700-2900-42-50S 2.7~2.9 50 - 42 1±1 30 1.7 2~8
FPA-2900-3300-50-50S 2.9~3.3 50 - 50 2±1 28~32 1.8 2~8
FPA-3300-4200-33.5-33 3.3~4.2 - 33 33.5 ±1.5 28 2 2~8
FPA-3300-3800-42-48S 3.3~3.8 48 - 42 ±2 32 2 2~8
FPA-3400-3500-50-50S 3.4~3.5 50 - 50 1±1 28~32 1.8 2~8
FPA-3420-3700-55-50S 3.42~3.7 50±0.5 47 55 3±1(max.) 28~32 2 2~8
FPA-3500-4500-43-43S 3.5~4.5 43 - 43 3±1 28 2 2~8
FPA-3500-5000-47-47S 3.5~5 47 - 47 - 32 - 2~8
FPA-3500-5000-50-50S 3.5~5 50 - 50 - 32 - 2~8
FPA-4000-5000-42-41.7S 4~5 41.7 - 42 ±2 24 2 2~8
FPA-4000-6000-40-47S 4~6 47 - 40 - 32 2 2~8
FPA-4000-6000-50-47S 4~6 47 - 50 - 32 2 2~8
FPA-4000-12000-43-43S 4~12 43 - 43 ±1.5 28~32 2(typ.) 2~8
FPA-4400-4950-46-40S 4.4~4.95 40 - 46 ±2 32 2 2~8
FPA-4400-5000-35-33 4.4~5 - 33 35 ±2 12 2 2~8
FPA-5000-6000-32-32 5~6 - 32 32 ±1 28 2 2~8
FPA-5000-6000-43-43S 5~6 43 - 43 1.5±1 28 2 2~8
FPA-5030-5150-55-50S 5.03~5.15 50 47 55 - 30 1.8 2~8
FPA-5100-5900-33-40S 5.1~5.9 40 - 33 ±1.5 24 2 2~8
FPA-5250-5850-42-40S 5.25~5.85 40 - 42 ±1.5 28 2 2~8
FPA-5600-5800-18-47 5.6~5.8 - 47 18 2±1 28~32 1.8 2~8
FPA-5650-5850-55-50S 5.65~5.85 50 47 55 - 30 1.8 2~8
FPA-5725-5850-48-50S 5.725~5.85 50 - 48 - 28 - 2~8
FPA-6000-18000-25-26S 6~18 26 - 25 ±1 12 2 2~8
FPA-6000-18000-33-26S 6~18 26 - 33 ±1 12 2 2~8
FPA-6000-18000-35-33S 6~18 33 - 35 ±3 8 2 2~8
FPA-6000-18000-35-35S 6~18 35 - 35 ±2.5 24~28 2 2~8
FPA-6000-18000-40-40S 6~18 40(typ.) 35 40 5±1(max.) 28 2 2~8
FPA-6000-18000-45-47S 6~18 47 - 45 - 28 2 2~8
FPA-8000-9000-40-40S 8~9 40 - 40 2±1 28 1.7 2~8
FPA-8000-12000-45-46S 8~12 46 - 45 ±2 28 2 2~8
FPA-8000-12000-43-53P 8~12 53 Peak - 43 - 28 - 2~8
FPA-8000-18000-30-30S 8~18 30 - 30 ±2 8 2 2~8
FPA-8500-10500-25-43S 8.5~10.5 43 - 25 ±2 28 1.6 2~8
FPA-12000-13000-43-41.7S 12~13 41.7 - 43 - 28 2 2~8
FPA-12000-18000-25-30S 12~18 30 - 25 ±2 5 2.5 2~8
FPA-12000-18000-38-27 12~18 - 27 38 ±1.5 12 2 2~8
FPA-12000-18000-38-33 12~18 - 33 38 ±1.5 12 2 2~8
FPA-14400-15350-38-39 14.4~15.35 - 39 38 2±1 28 1.8 2~8
FPA-14700-15100-13-40 14.7~15.1 - 40 13 1±1 28 2 2~8
FPA-15000-18000-30-33 15~18 - 33 30 ±0.5 8 2 2~8
FPA-16000-23000-30-30S 16~23 30 - 30 1 8 2 2~8
FPA-18000-22000-35-13 18~22 - 13 35 ±1 5 2 2~8
FPA-18000-22000-40-33 18~22 - 33 40 ±1 7.5 2 2~8
FPA-18000-26000-30-30S 18~26 30 - 30 ±3.5 8 2.5 2~8
FPA-18000-26500-15-23 18~26.5 - 23 15 ±1 9 1.8 2~8
FPA-18000-26500-30-30 18~26.5 - 30 30 - 8 2 2~8
FPA-18000-26500-40-40S 18~26.5 40 - 40 ±2 8 2 2~8
FPA-18000-26500-45-40S 18~26.5 40 - 45 ±3 -5.6 2 2~8
FPA-18000-40000-20-20 18~40 - 20 20 - 6 2 2~8
FPA-18000-40000-30-20 18~40 - 20 30 ±2 12 1.8 2~8
FPA-18000-40000-30-23S 18~40 23 - 30 ±2.5 12 2.5 2~8
FPA-18000-40000-30-27 18~40 - 27 30 ±2.5 12 2 2~8
FPA-18000-40000-30-30 18~40 - 30 30 ±2.5 6 2 2~8
FPA-19000-21000-40-30 19~21 - 30 40 ±1 8 2 2~8
FPA-20000-32000-22-21 20~32 - 21 22 ±2.5 5 2 2~8
FPA-20000-32000-25-21 20~32 - 21 25 ±1 8 1.5 2~8
FPA-20000-40000-33-29S 20~40 29 - 33 ±2.5 5 2 2~8
FPA-20000-50000-25-26 20~50 - 26 25 2.5 5 2(typ.) 2~8
FPA-22000-24000-25-30S 22~24 30 - 25 ±1 6 1.8 2~8
FPA-23000-25000-15-27S 23~25 27 - 15 ±0.5 12 1.5 2~8
FPA-23000-25000-15-30 23~25 - 30(typ.) 15 ±0.5 12 1.5(typ.) 2~8
FPA-24000-26000-30-30 24~26 - 30 30 - 8 2 2~8
FPA-24000-26000-30-32 24~26 - 32 30 - 8 2 2~8
FPA-25000-28000-18-25 25~28 - 25 18 - 6 2 2~8
FPA-25500-27500-20-30 25.5~27.5 - 30 20 ±1.5 12 2 2~8
FPA-25500-27500-30-30 25.5~27.5 - 30 30 ±2.5(max.) 12 2(typ.) 2~8
FPA-26000-40000-30-30S 26~40 30 - 30 ±4 8 2，5 2~8
FPA-26500-40000-18-23 26.5~40 - 23 18 ±1.5 6 1.8 2~8
FPA-26500-40000-20-37.8S 26.5~40 37.8 - 20 ±8(max.) 20~24 2.5 2~8
FPA-26500-40000-25-30S 26.5~40 30 - 25 ±5 12 2 2~8
FPA-26500-40000-27-27 26.5~40 - 27 27 ±2 6.5 2 2~8
FPA-26500-40000-30-26S 26.5~40 26 - 30 ±2 6 2 2~8
FPA-27000-31000-30-23 27~31 - 23 30 ±1.5 12 2 2~8
FPA-27500-31200-25-25 27.5~31.2 - 25 25 ±1 12 2 2~8
FPA-28000-42000-16-24S 28~42 24 - 16 1.5 8 1.8(typ.) 2~8
FPA-29000-31000-35-30 29~31 - 30 35 ±1 6 2 2~8
FPA-29500-31500-20-30 29.5~31.5 - 30 20 ±1 12 2 2~8
FPA-32000-36000-35-35S 32~36 35 - 35 ±2.5 24~28 2 2~8
FPA-34000-36000-12-40S 34~36 40 - 12 - 22 - 2~8
FPA-36000-50000-20-30 36~50 - 30 20 ±1.5 5 2 2~8
FPA-37000-40000-45-34-F 37~40 - 34 45 - 6 2 2~8
FPA-37000-43000-10-15 37~43 - 15 10 ±1.5 6 2 2~8
FPA-38000-42000-25-30 38~42 - 30 25 ±1.5 6 2 2~8
FPA-39000-40000-40-33 39~40 - 33 40 - 6 2 2~8
FPA-40000-50000-20-20 40~50 - 20 20 - 6 2 2~8
FPA-40000-50000-45-29S 40~50 29 - 45 ±2 5~6 2 2~8
FPA-40000-53000-40-18S 40~53 18 - 40 ±2 5 2 2~8
FPA-40000-60000-25-26S 40~60 26 - 25 - 25 2 2~8
FPA-40000-60000-35-20S 40~60 20 - 35 ±5 7 2 2~8
FPA-40000-60000-40-20S 40~60 20 - 40 ±2.5 15 2 2~8
FPA-47000-52000-20-30S 47~52 30 - 20 ±1.5 15 2 2~8
FPA-47000-52000-25-30S 47~52 30 - 25 ±1.5 15 2 2~8
FPA-47000-52000-30-30S 47~52 30 - 30 ±2 15 2 2~8
FPA-50000-75000-35-19S 50~75 19 - 35 - 7 2.5 2~8
FPA-55000-90000-20-19S 55~90 19 - 20 ±1.5 5 2 2~8
FPA-60000-67000-30-27 60~67 30 27 30 ±2 5 2 2~8
FPA-60000-90000-27-20S 60~90 20 - 27 - 7 2 2~8
FPA-61000-65000-18-26S 61~65 26 - 18 ±1 5 2 2~8
FPA-61000-65000-20-20S 61~65 20 17 20 ±1.5 5 2 2~8
FPA-75000-110000-25-15S 75~110 15 - 25 - 7 1.8 2~8
FPA-110000-150000-18-15S 110~150 15 - 18 - 7 3 2~8
FPA-210000-230000-12-20S 210~230 20 - 12 - 5 2 2~8
FPA-210000-230000-18-14S 210~230 14 - 18 - 7 3 2~8
FPA-215000-230000-16-10.5S 215~230 10.5 - 16 ±1.5 7 2.5 2~8
